Partimos Carbon Frameset "Black Sheep"
Partimos Carbon Frameset "Black Sheep"
SKU: 93838
Couldn't load pickup availability
DELIVERY TIMES
Germany: 2 - 4 working days
EU countries: 4 – 8 working days

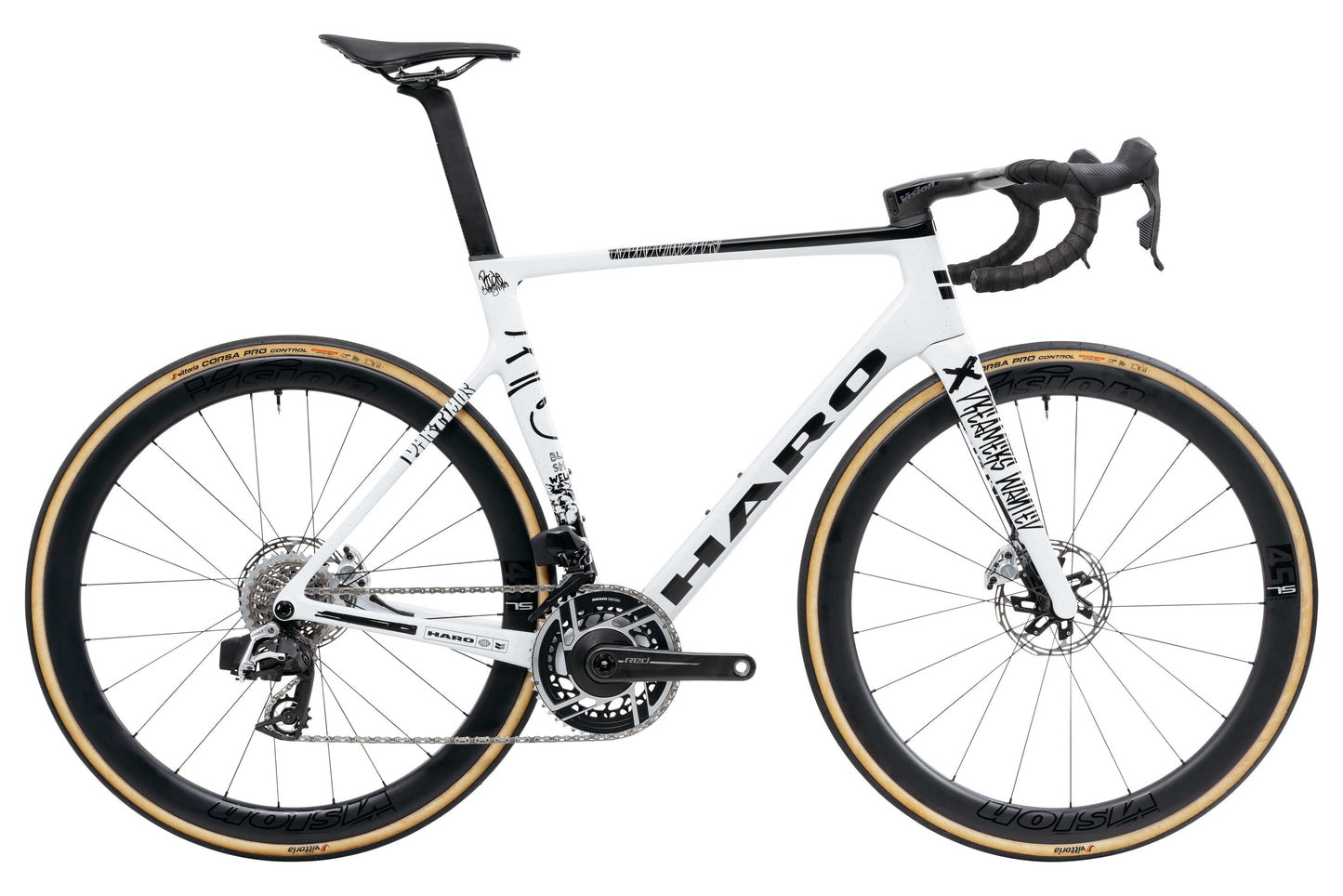

The Partimos Carbon Black Sheep delivers the well-known performance of the Partimos series – lightweight, direct, fast, and made for shredding. The frame is based on the same proven platform as the other Partimos models, combining efficiency with an uncompromising riding experience.
However, visually, the Black Sheep deliberately goes its own way.
The metallic white with fine silver flakes creates an elegant look that appears different depending on the light. Combined with the black details and the striking artwork, the result is a bike that clearly stands out from the current uniform look.
Not to be different at all costs, but because individuality has always had more style than mainstream.
The black sheep is not different – everyone else is just the same.
PARTIMOS CARBON PERFORMANCE
Not different. Just not like everyone else.
BLACK SHEEP ENERGY
The Partimos Carbon Black Sheep deliberately breaks with the current standard look of modern bikes. While monochrome frames with white logos are ubiquitous, this bike takes the opposite approach.
The metallic white with fine silver flakes provides a noble finish with depth, while the black artworks and statements give the frame its rebellious character. Loud without being loud.
The message behind it is simple:
The black sheep isn't the different one. Everyone else is just the same.
A bike for riders who ride their own style – not the one dictated by the market.
BUILT FOR HIGH-END COMPONENTS
Beneath the exceptional look lies the proven platform of the Partimos Carbon series. The lightweight UCI-certified carbon frame delivers exactly what you expect from a modern performance bike: high stiffness, direct power transfer, and precise handling.
Whether it's long days in the saddle, quick after-work rides, or maximum pace on the asphalt — the Black Sheep remains efficient, agile, and brutally fast.
The design stands out.
The performance definitely doesn't.
TESTED WITH THE BEST
Tour Test 23.11.2024 (Quote):
"...fast right out of the box...With a pedaling power of 213 watts, which is needed to overcome its own air resistance at a race pace of 45 km/h, the Haro immediately joins the illustrious circle of the fastest race all-rounders. Comparable bikes such as the Cannondale SuperSix, Specialized Tarmac, or Van Rysel RCR..."
PRODUCT INFORMATION
DESCRIPTION
- Partimos Carbon Road Bike Frame
State-of-the-art carbon frame with a performance-oriented race geometry from the Partimos platform. The optimized carbon structure ensures an ideal balance of stiffness, weight, and aerodynamics – perfect for ambitious road cyclists. - Optimized for electronic shifting systems
The frame platform is specifically designed for electronic shifting groupsets. This allows for particularly clean integration, precise shifting, and minimal maintenance. - Full carbon fork with integrated cable routing
The lightweight carbon fork with a tapered carbon steerer and fully integrated cable routing ensures precise handling, high front-end stiffness, and effective vibration damping on long rides. - Carbon Aero Seatpost
The Haro Rivette Carbon Aero seatpost combines aerodynamic design with low weight and high stiffness, while also increasing riding comfort through additional vibration damping. - Race Geometry of the Partimos Carbon Platform
The sporty geometry is designed for maximum power transfer, precise handling, and high efficiency at speed – ideal for fast training laps, races, and long performance rides. - Fully Integrated Cable Routing
Internal cable and housing routing via the Token A-Box Headset System provides a particularly clean look, improved aerodynamics, and additional protection for the cables. - Modern Disc Platform
Flat-mount mounts for hydraulic Shimano disc brakes with 160mm Centerlock rotors offer strong braking performance, precise modulation, and maximum control in all weather conditions.
SPECIFICATIONS
GEOMETRY
| SIZE | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Top Tube (Effective) | 518mm | 533mm | 549mm | 565mm | 581mm | 605mm |
| Seat Tube (C-T) | 430mm | 470mm | 510mm | 536mm | 558mm | 590mm |
| Stack Height | 513mm | 533mm | 553mm | 574mm | 594mm | 624mm |
| Reach | 374mm | 383mm | 387mm | 393mm | 398mm | 406mm |
| Standover | 721mm | 753mm | 786mm | 809mm | 832mm | 862mm |
| Head Tube Length | 110mm | 130mm | 153mm | 164mm | 188mm | 220mm |
| Head Angle | 70.9° | 71.2° | 71.2° | 73° | 73° | 73° |
| Seat Angle | 74.6° | 74.3° | 74.3° | 73.3° | 72.9° | 72.3° |
| Wheel Base | 983mm | 997mm | 1009mm | 995mm | 1008mm | 1025mm |
| Chainstay | 408mm | 408mm | 408mm | 408mm | 408mm | 408mm |
| BB Drop | 74mm | 74mm | 72mm | 72mm | 69mm | 69mm |
| Axle to Crown | 376mm | 376mm | 376mm | 376mm | 376mm | 376mm |
| Fork Offset | 53mm | 53mm | 53mm | 45mm | 45mm | 45mm |
| Stem Length | 90mm | 100mm | 100mm | 110mm | 110mm | 120mm |
| Bar Width | 380mm | 380mm | 400mm | 400mm | 420mm | 420mm |
| Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Trail | 62.7mm | 60.4mm | 60.7mm | 57.8mm | 57.8mm | 57.8mm |
| Wheel Size | 700c | 700c | 700c | 700c | 700c | 700c |
SIZE GUIDE
| Size | Inches | CM |
|---|---|---|
| 48 | 5'1" - 5'4" | 153 - 163 |
| 51 | 5'4" - 5'7" | 163 - 172 |
| 54 | 5'7" - 5'9" | 172 - 178 |
| 56 | 5'9" - 5'11" | 178 - 185 |
| 58 | 5'11" - 6'2" | 185 - 192 |
| 61 | 6'2" - 6'5" | 190 - 198 |
