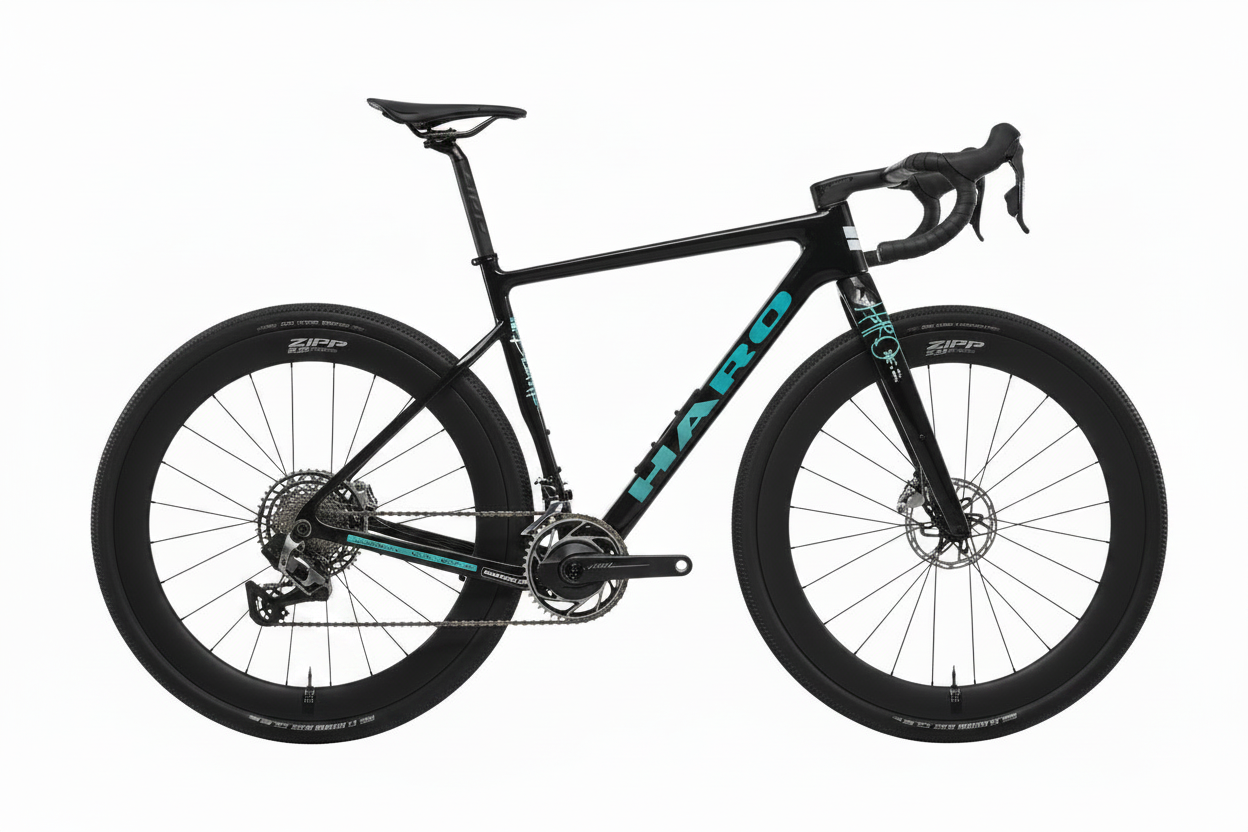

• Haro Bikes Buzzard Carbon Frameset “Black Sunrise” road bike with blue accents, drop bars, and deep wheels on a white background.
  • Close-up of a Haro Bikes Buzzard Carbon Frameset “Black Sunrise” with teal and white graphics, featuring the front suspension fork.

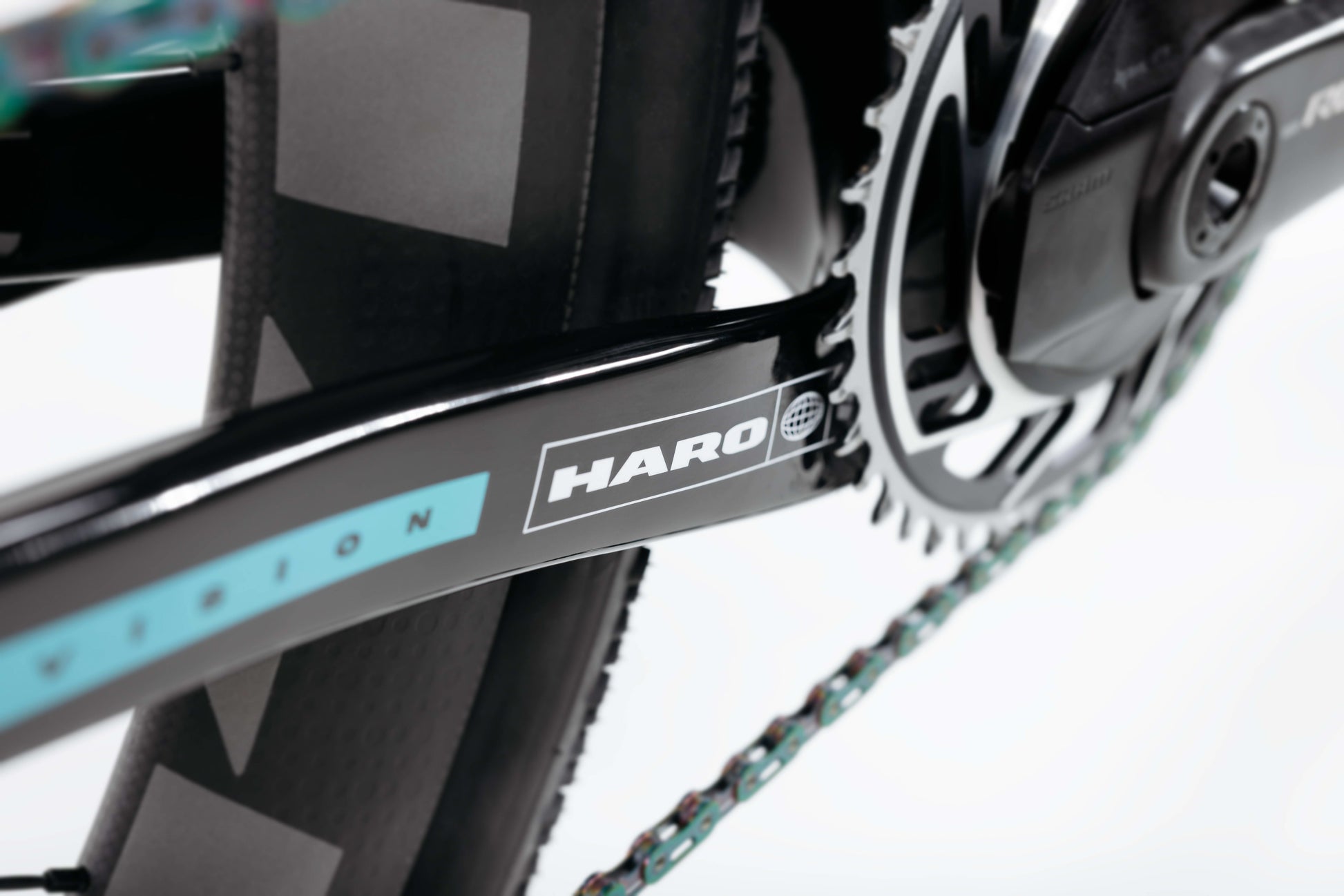

  • Close-up of a black Haro Bikes crank arm on the Buzzard Carbon Frameset “Black Sunrise,” plus chainring and rear wheel visible.

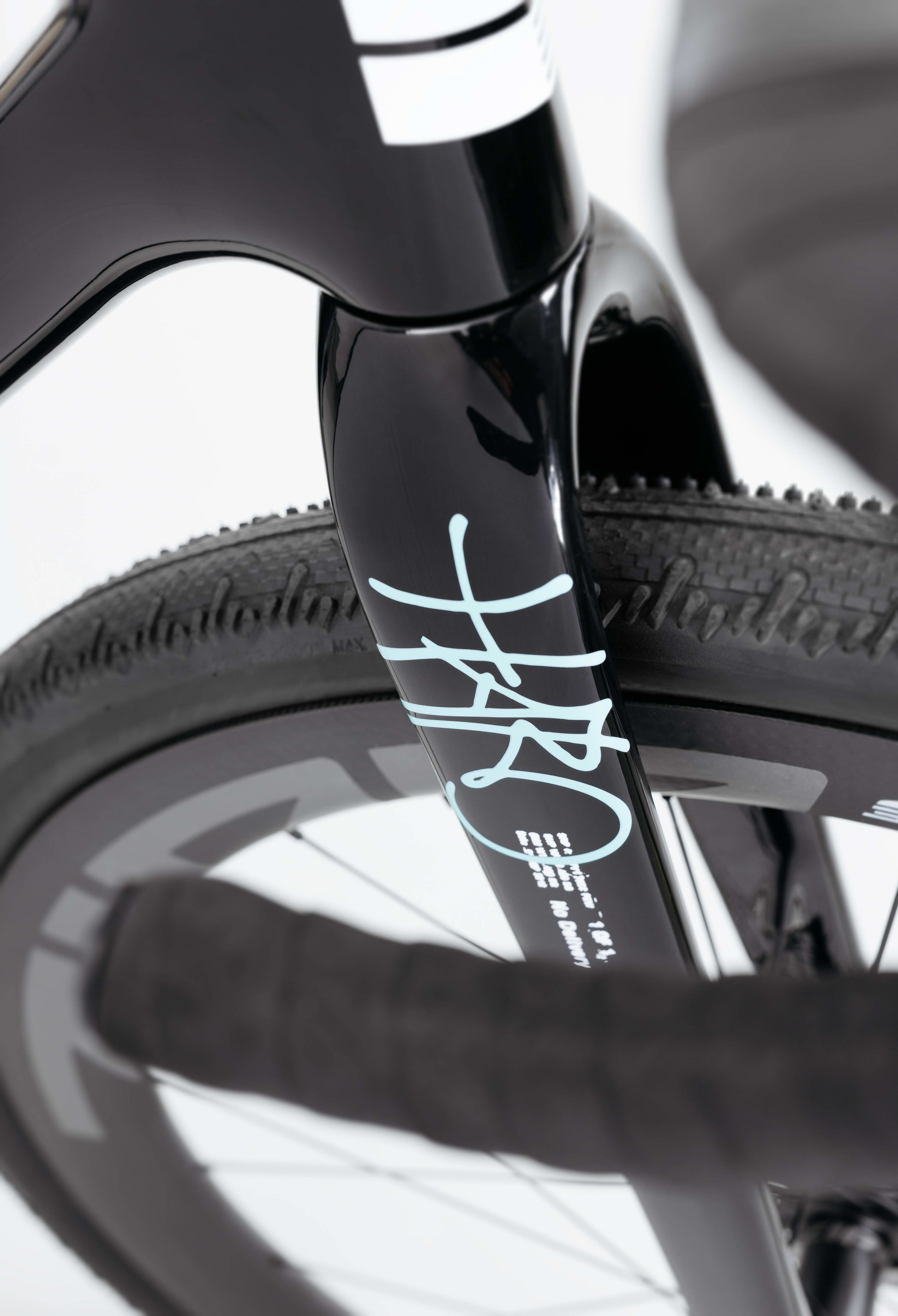

  • Close-up of the Haro Bikes Buzzard Carbon Frameset “Black Sunrise” fork, with white accents, textured tire, and partial handlebar visible.
  • Close-up of the Haro Bikes Buzzard Carbon Frameset “Black Sunrise” with icons, highlighting its stylish look and in-frame storage.
  • Close-up of a Haro Bikes Buzzard Carbon Frameset “Black Sunrise” with a blue EST. 78 sticker near the rear tire and seat stay.
1 6

Buzzard Carbon Frameset "Black Sunrise"

Buzzard Carbon Frameset "Black Sunrise"

93844

Size
24.017,00 DKK
24.017,00 DKK
Sale Sold out
Taxes included. Shipping calculated at checkout.

DELIVERY TIMES

Germany: 2 - 4 working days

EU countries: 4 – 8 working days

The Buzzard Carbon Custom Frameset "Black Sunrise" is made for everyone who sees gravel not as a discipline, but as freedom. Asphalt, gravel or the road not marked on any map – every tour begins where curiosity is greater than the plan.

Black Sunrise stands for the moment when the day is just beginning and only possibilities lie ahead of you. The perfect foundation for your individual dream bike – built for long adventures, fast after-work rides and everything in between.

Ride Further. Explore More.

The basis is our new Buzzard Carbon frame with fully integrated cable routing, UDH dropout and practical In-Frame Storage. Light, efficient and comfortable enough for long days in the saddle – whether on fast gravel sections or rough forest trails.

The Buzzard Carbon Custom Frameset forms the ideal basis for individual builds by your HARO specialist dealer. Depending on the intended use and personal requirements, the frameset can be equipped with various high-quality drivetrains and wheelsets.

HARO offers perfectly coordinated B-Kits (drivetrain & components) and C-Kits (wheelsets) for this purpose. Together with your specialist dealer, a gravel bike is created that is optimally tailored to your riding style and your adventures.

Ride your way. Build your Buzzard.

View full details

Ride your way. Build your Buzzard.

Freedom is wherever you are.

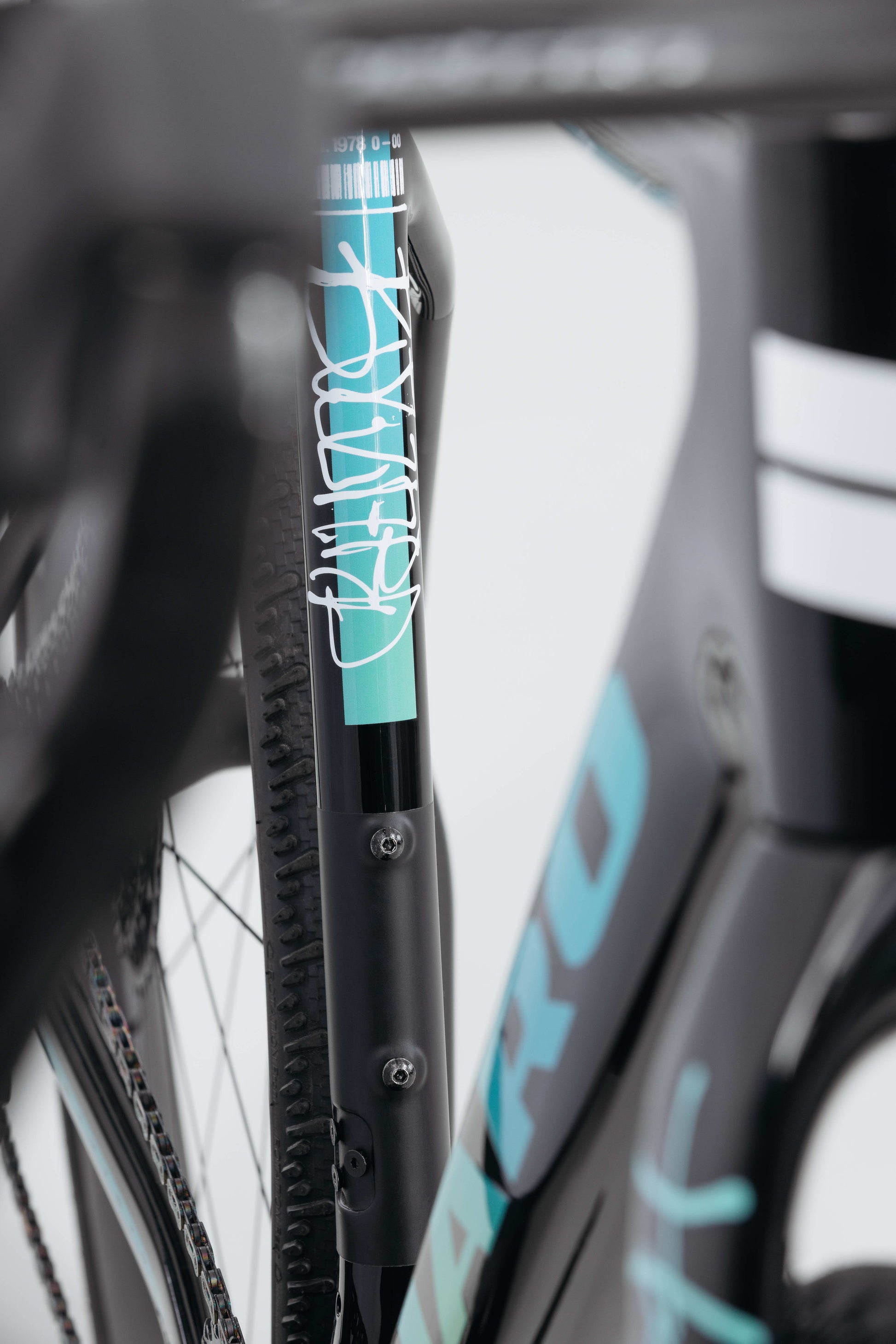

Close-up of a Haro Bikes Buzzard Carbon Frameset “Black Sunrise” with teal and white graphics, featuring the front suspension fork.

Build Your Ride. Start with the Frame.


The Buzzard Carbon Custom Framesetprovides the perfect foundation for your custom gravel bike. State-of-the-art carbon technology, clever integration, and maximum versatility give you the freedom to build your bike precisely to your specifications.

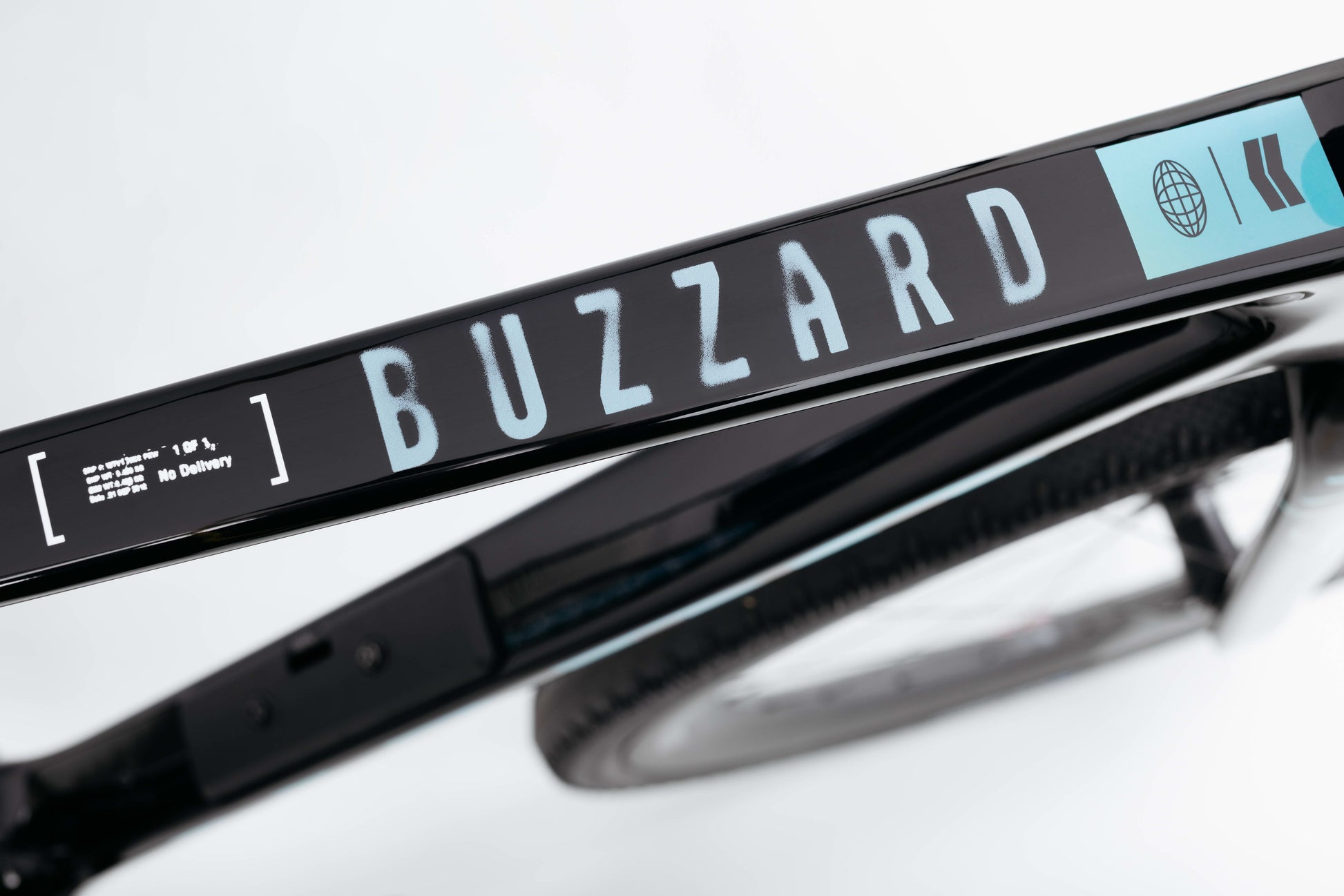

Close-up of the Haro Bikes Buzzard Carbon Frameset “Black Sunrise” with icons, highlighting its stylish look and in-frame storage.

For individual dealer bodyworks

Our framesets are the ideal basis for custom builds by yourHARO specialist dealer. Depending on the model, various high-quality complete groupsets are available.

The following equipment variants are available for the Buzzard Carbon Custom:


  • SRAM RED XPLR AXS E1

  • SRAM Force XPLR AXS E1

  • SRAM Rival XPLR AXS E1

  • SRAM Apex XPLR AXS

Various premium wheelsets can be combined accordingly:


  • ZIPP 303 XPLR SW

  • ZIPP 303 XPLR S

  • Vision SL-K AGX i25 Carbon

This creates a gravel bike that is optimally tailored to your requirements and riding style.

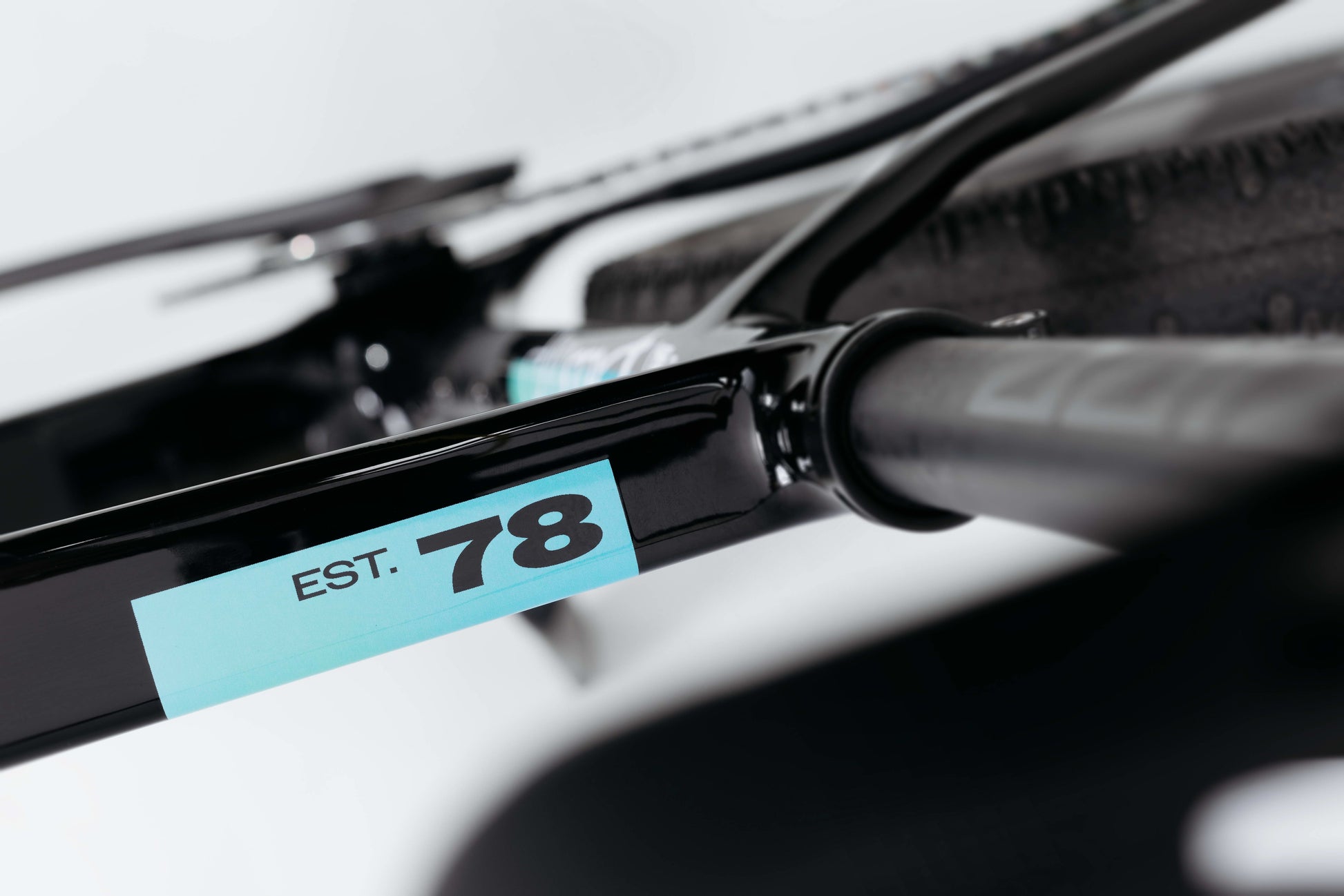

Close-up of a Haro Bikes Buzzard Carbon Frameset “Black Sunrise” with a blue EST. 78 sticker near the rear tire and seat stay.

Complete Kits for Direct Customers

For end customers, we offer our individually configured bikes as Complete Kits. These are pre-configured with perfectly matched components and allow for an easy entry into the Buzzard Carbon Custom platform.

PRODUCT INFORMATION

DESCRIPTION

SIZE S M L XL XXL
Frame Size Equivalent 48 cm 51 cm 54 cm 56 cm 59 cm
Top Tube (Effective) 548 mm 561 mm 577 mm 588 mm 610 mm
Seat Tube (C-T) 470 mm 500 mm 520 mm 540 mm 570 mm
Stack Height 565 mm 575 mm 585 mm 595 mm 620 mm
Reach 385 mm 395 mm 403 mm 411 mm 420 mm
Head Tube Length 97 mm 107 mm 116 mm 126 mm 153 mm
Head Angle 71° 71.5° 72° 72° 72°
Seat Angle 74.5° 74° 73.5° 73.5° 73.5°
Wheel Base 1026 mm 1035 mm 1041 mm 1052 mm 1070 mm
Chainstay 425 mm 425 mm 425 mm 425 mm 425 mm
BB Drop 76 mm 74 mm 74 mm 74 mm 74 mm
Axle to Crown 435 mm 435 mm 435 mm 435 mm 435 mm
Fork Offset 45 mm 45 mm 45 mm 45 mm 45 mm
Trail 76 mm 72 mm 69 mm 69 mm 69 mm

SPECIFICATIONS

GEOMETRY

SIZE S M L XL XXL
Frame Size Equivalent 48 cm 51 cm 54 cm 56 cm 59 cm
Top Tube (Effective) 548 mm 561 mm 577 mm 588 mm 610 mm
Seat Tube (C-T) 470 mm 500 mm 520 mm 540 mm 570 mm
Stack Height 565 mm 575 mm 585 mm 595 mm 620 mm
Reach 385 mm 395 mm 403 mm 411 mm 420 mm
Head Tube Length 97 mm 107 mm 116 mm 126 mm 153 mm
Head Angle 71° 71.5° 72° 72° 72°
Seat Angle 74.5° 74° 73.5° 73.5° 73.5°
Wheel Base 1026 mm 1035 mm 1041 mm 1052 mm 1070 mm
Chainstay 425 mm 425 mm 425 mm 425 mm 425 mm
BB Drop 76 mm 74 mm 74 mm 74 mm 74 mm
Axle to Crown 435 mm 435 mm 435 mm 435 mm 435 mm
Fork Offset 45 mm 45 mm 45 mm 45 mm 45 mm
Trail 76 mm 72 mm 69 mm 69 mm 69 mm

SIZE GUIDE

Rider Height Recommended Size Frame Size
160 - 168 cm Small (S) 48 cm
168 - 178 cm Medium (M) 51 cm
178 - 186 cm Large (L) 54 cm
186 - 195 cm X-Large (XL) 56 cm
195 - 205 cm XX-Large (XXL) 59 cm

Size recommendation is based on rider height. If you are between two sizes, choose the smaller size for a more agile and performance-oriented ride or the larger size for increased stability and comfort on longer adventures.

For the best fit, we recommend considering your riding style, body proportions and preferred riding position.
