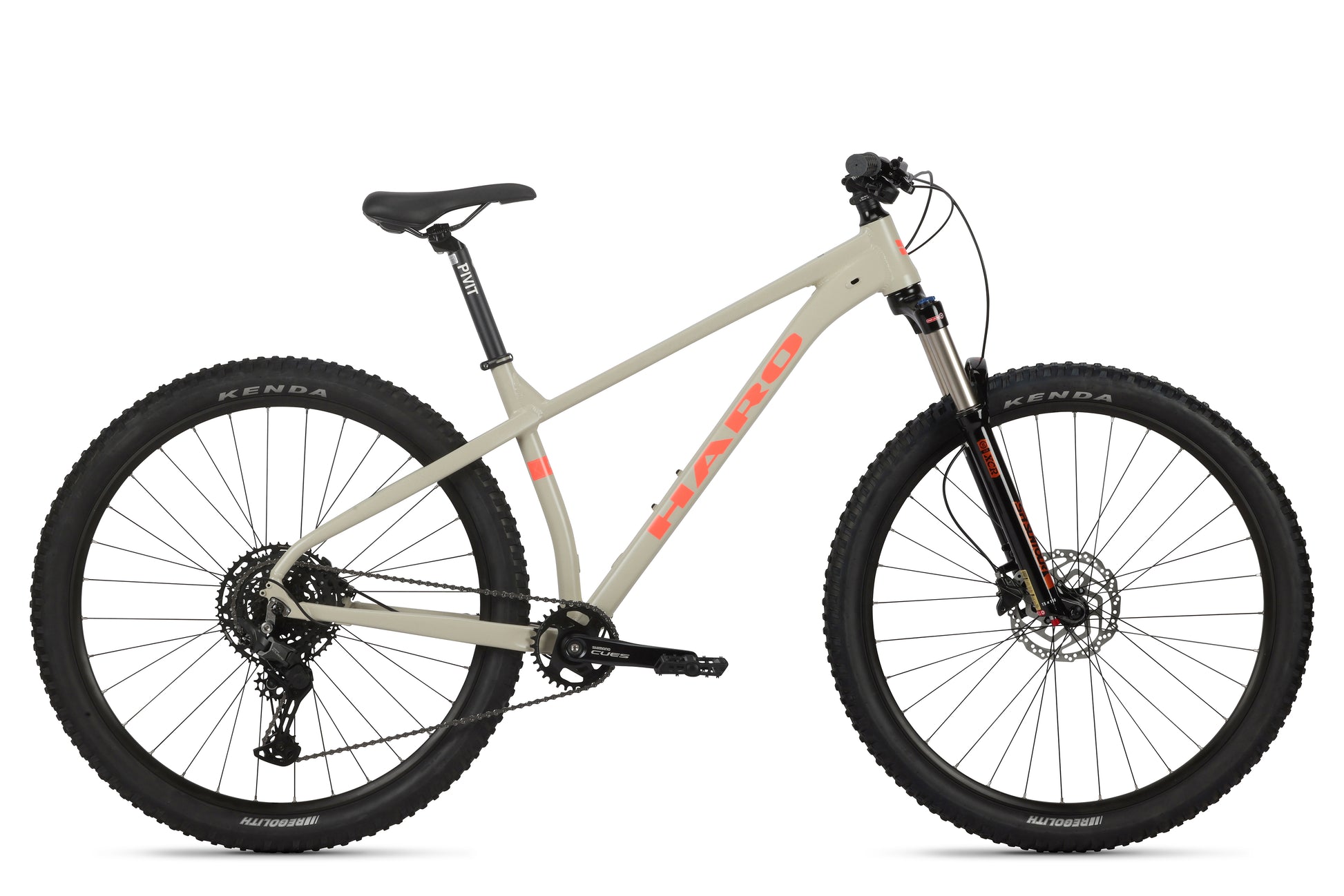

Double Peak 2
Double Peak 2
SKU: 15759
Couldn't load pickup availability
The Double Peak 2 is ready for any adventure! The heat-treated aluminum frame with tapered head tube and reinforced top and down tube offers more features than you would expect in this price range.
There is also an SR Suntour suspension fork with 120 mm travel that effortlessly compensates for bumps. The robust double-wall rims are equipped with Shimano Center Lock hubs and Kenda Regolith tires - for optimal traction on any terrain.
The Shimano Cues 1x10 gears ensure smooth gear changes, while Shimano's 2-piston hydraulic disc brakes ensure reliable control and safety.
Sizing Guide
Sizing Guide
| Size | Inches | CM |
|---|---|---|
| S | 5'1" - 5'7" | 155 - 170 cm |
| M | 5'6" - 5'11" | 168 - 180 cm |
| L | 5'10" - 6'3" | 178 - 190 cm |
| XL | 6'2" - 6'7" | 188 - 200 cm |
Share
SPECIFICATIONS
DESCRIPTION
- Hydroformed, heat-treated 6061-T6 aluminum hardtail frame. Tapered head tube with double-butted top and down tubes. Quick-release dropouts.
- SR Suntour SF18 XCR34-Boost, 1.5" tapered fork, 15x110 thru-axle, 120mm travel
- Shimano Cues 10-speed drivetrain with 11-48T gearing
- Double-wall 32H alloy rims with Shimano TC500 center-lock hubs, 15mm front, quick-release rear
- Kenda Regolith 29 x 2.4" front and rear
- Shimano MT200 Hydraulic 2-piston disc brake with 180/160mm rotors
EQUIPMENT
| FRAMESET | |
|---|---|
| Frame | Hydroformed, heat-treated 6061-T6 aluminum hardtail frame. Tapered head tube with double-butted top and down tubes. 135mm axle spacing with quick-release dropouts. Internal cable routing. UDH derailleur hanger. |
| Fork | SR Suntour SF18 XCR34-Boost, 1.5" tapered, 15x110 thru axle, 120mm travel |
| Colors | Matte Black / Teal, Gloss Tan / Lava |
| DRIVETRAIN | |
| Cranks | Shimano Cues 2-piece, FC-U6000-1, 170mm, 32T chainring |
| Pedals | FPD PC |
| Chain | Shimano Linkglide CN-LG500 |
| Bottom Bracket | Shimano Cues BB-MT501 BSA 73mm |
| Front Derailleur | |
| Rear Derailleur | Shimano Cues 10-speed, RD-6000 Shadow Plus |
| Derailleur Shifter | Shimano Cues 10-speed with optical window |
| Freewheel/Cassette | Shimano Cues CS-LG3000-10 11-48T |
| WHEELS | |
| Tires | Kenda Regolith 29 x 2.4" front and rear |
| Wheels/Rims | Alloy double-wall, pinned seams, 32h w/eyelets |
| Front Hub | Shimano HB-TC500 Center Lock 32h, 15mm thru-axle |
| Rear Hub | Shimano FH-TC500, Center lock, 32h, quick release |
| BRAKING SYSTEM | |
| Brakes | Shimano MT200 Hydraulic 2-piston disc brake with 180mm rotor front and 160mm rotor rear |
| OTHER COMPONENTS | |
| Grips/Tape | WTB WeirWolf |
| Handlebar | Haro Alloy 6061 Pivot MTB riser bar, 780 wide, 20mm rise |
| Stem | Alloy 6061 Forged 40mm reach |
| Headset | FSA Dozer sealed, tapered 1-1/8" - 1-1/5" (44/56mm) |
| Saddle | WTB Volt Medium |
| Seat Post | Forged alloy micro-adjust pivot seat post |
| Seat Clamp | Forged alloy 6061 |
| Extras | Tubeless tire sealant included. |
FRAME GEOMETRY
| SIZE | Small | Medium | Large | X-Large | |
|---|---|---|---|---|---|
| Top Tube (effective) | 574.9mm | 592.2mm | 614mm | 648.5mm | |
| Seat Tube | 380mm | 420mm | 450mm | 500mm | |
| Seat Tube Angle | 74° | 74° | 74° | 74° | |
| Chainstay Length | 445mm | 445mm | 445mm | 445mm | |
| Wheelbase | 1143.2mm | 1165.1mm | 1188.8mm | 1227.6mm | |
| Head Tube Length | 95mm | 100mm | 110mm | 120mm | |
| Standover | 775.9mm | 786mm | 789.7mm | 805.3mm | |
| Stack Height | 625.2mm | 629.8mm | 639.1mm | 648.3mm | |
| Reach | 420mm | 440mm | 460mm | 495mm | |
| Axle to Crown | 527mm | 527mm | 527mm | 527mm | |
| BB Drop | 62mm | 62mm | 62mm | 62mm | |
| Stem Length | 35mm | 35mm | 35mm | 35mm | |
| Fork Offset | 51mm | 51mm | 51mm | 51mm | |
| Stem Length | 35mm | 35mm | 35mm | 35mm |
Sizing Guide
| Size | Inches | CM |
|---|---|---|
| S | 5'1" - 5'7" | 155 - 170 cm |
| M | 5'6" - 5'11" | 168 - 180 cm |
| L | 5'10" - 6'3" | 178 - 190 cm |
| XL | 6'2" - 6'7" | 188 - 200 cm |
-
