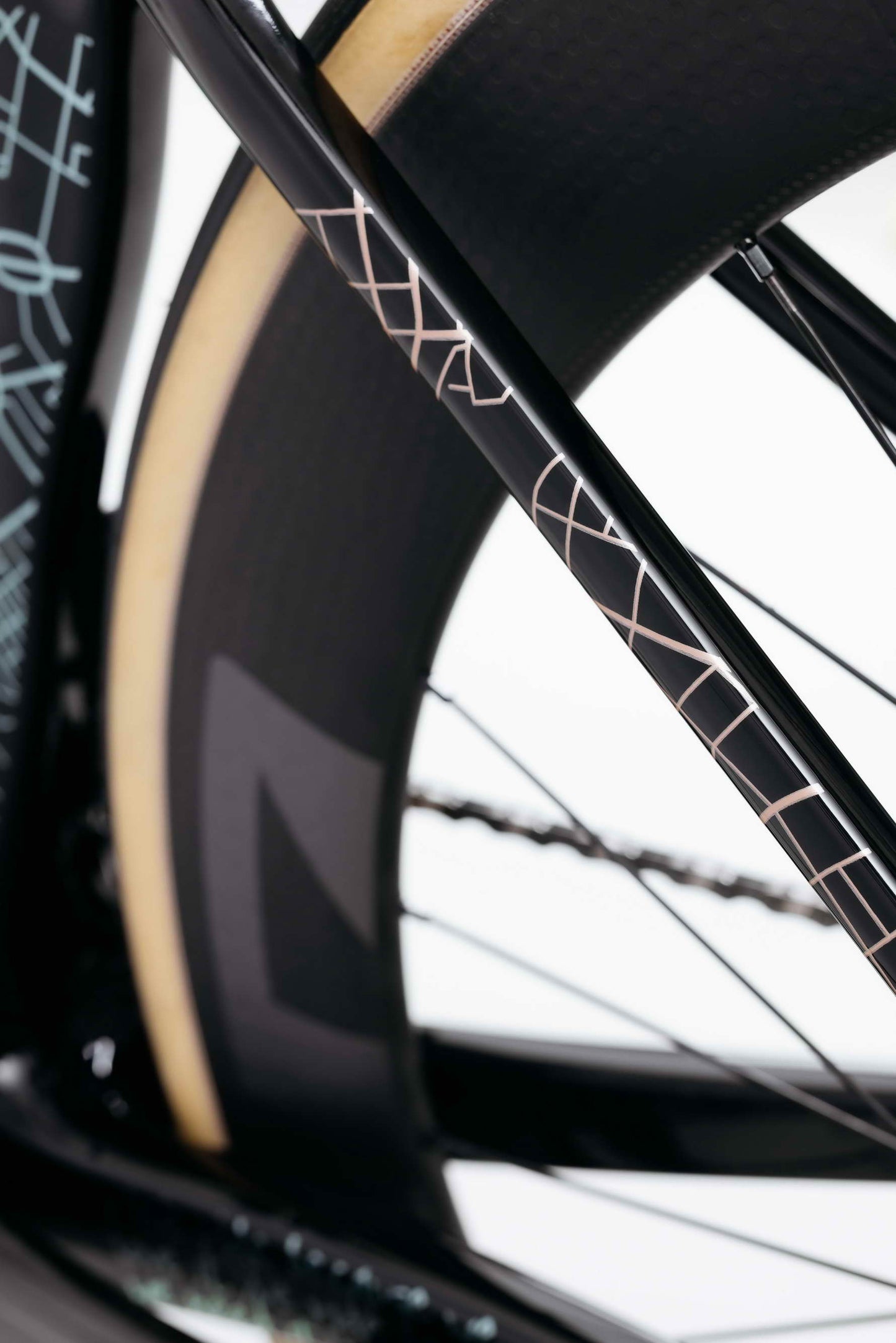

  • Close-up of Haro Bikes' Partimos Carbon Custom "Grid" rear wheel, tan sidewall tire, and geometric frame patterns.
1 12

Partimos Carbon Custom "Grid"

Partimos Carbon Custom "Grid"

€4.999,99 EUR
€4.999,99 EUR
Sale Sold out
oder ab ca. €2.999,99 effektiv mit JobRad®**
Dienstrad-Leasing zum unreduzierten Ausgangspreis**
Taxes included. Shipping calculated at checkout.

DELIVERY TIMES

Germany: 2 - 4 working days

EU countries: 4 – 8 working days

The Partimos Carbon Custom "GRID" stands for everything that road cycling is about. No watts, no segments, no excuses. Just go out, clock up the miles and enjoy the moment.

The GRID is made for riders who don't differentiate between asphalt, side roads or unknown routes. It's not about where you ride – it's about that you ride. Today We Ride.

The basis is the same lightweight and uncompromisingly fast carbon frame as with all Partimos models. Direct in acceleration, precise in handling and built for long days in the saddle. The special GRID design combines technical lines and modern graphic elements with a clear message: Ride Anywhere. Ride Everywhere.

We ride because of the ride. Nothing more. Nothing less.

As with all Partimos Custom models, you can also configure the GRID according to your wishes. All available options and details can be found further down in the specifications.

View full details

PARTIMOS CARBON PERFORMANCE

No Destination Required

Heute klettern wir!

The Partimos Carbon GRID reminds us what road cycling is really about. Not numbers, rankings or trends. But about the riding itself. The design combines technical lines and modern graphic elements with a clear message: Today We Ride. Ride Anywhere. Ride Everywhere. The graphics stretch across the frame like a network of routes, representing the countless paths that lie ahead of you. The well-known home loop, the spontaneous turn-off or the road you've never ridden before. Every ride begins with the same decision: Just go.

Close-up of Haro Bikes Partimos Carbon Custom "Grid" frame, with abstract city map art on glossy black carbon surface.

THE WORLD IS YOUR GRID

Beneath the striking design lies the proven platform of the Partimos Carbon Series. The lightweight, UCI-certified carbon frame combines high stiffness, direct power transfer, and precise handling – exactly what defines a modern performance road bike.

Whether on your daily training ride, during long days in the saddle, or when the road ahead simply beckons: The Partimos GRID remains efficient, agile, and uncompromisingly fast.

The graphics tell of countless possibilities to discover new paths. The performance ensures that you can enjoy every single one of them.

Close-up of a black Haro Bikes Partimos Carbon Custom "Grid" frame with geometric designs and text: ride anywhere, ride everywhere.

TESTED WITH THE BEST

Tour Test (Quote):

"... immediately fast...With a pedaling power of 213 watts, which it needs to overcome its own air resistance at a race pace of 45 km/h, the Haro immediately enters the illustrious circle of the fastest race all-rounders. Comparable bikes such as the Cannondale SuperSix, Specialized Tarmac, or Van Rysel RCR..."

PRODUCT INFORMATION

DESCRIPTION

  • Partimos Carbon Road Bike Frame
    State-of-the-art carbon frame with a performance-oriented race geometry from the Partimos platform. The optimized carbon structure ensures an ideal balance of stiffness, weight, and aerodynamics – perfect for ambitious road cyclists.
  • Optimized for electronic shifting
    The frame platform is specifically designed for electronic groupsets. This allows for particularly clean integration, precise shifting, and minimal maintenance.
  • Full carbon fork with integrated cable routing
    The lightweight carbon fork with a tapered carbon steerer and fully integrated cable routing ensures precise handling, high front-end stiffness, and effective vibration damping on long rides.
  • Carbon Aero Seatpost
    The Haro Rivette Carbon Aero Seatpost combines aerodynamic shaping with low weight and high stiffness, while increasing riding comfort through additional vibration damping.
  • Race Geometry of the Partimos Carbon Platform
    The sporty geometry is designed for maximum power transfer, precise handling, and high efficiency at speed – ideal for fast training rides, races, and long performance outings.
  • Fully integrated cable routing
    Internal cable and housing routing via the Token A-Box Headset System ensures a particularly clean look, improved aerodynamics, and additional protection for the cables.
  • Modern Disc Platform
    Flat-mount fittings for hydraulic Shimano disc brakes with 160mm Centerlock rotors offer strong braking performance, precise modulation, and maximum control in all weather conditions.

SPECIFICATIONS

Components Dura Ace DI2 Ultegra DI2 105 DI2
Frame Haro Partimos Carbon Frame Haro Partimos Carbon Frame Haro Partimos Carbon Frame
Fork Haro Partimos Carbon Fork w internal routing and Carbon Tapered steerer Haro Partimos Carbon Fork w internal routing and Carbon Tapered steerer Haro Partimos Carbon Fork w internal routing and Carbon Tapered steerer
Colors - - -
Weight 16.18 lbs 7.34 kg, (56cm) 16.97 lbs 7.7 kg, (56cm) 17.19 lbs 7.79 kg, (56cm)
Cranks Shimano DURA-ACE 52-36T; 48cm, 165mm; 51cm, 170mm; 54cm, 172.5mm; 56cm, 172.5mm; 58cm, 175mm; 61cm, 175mm Shimano Ultegra FC-R8100 50-34T; 48cm, 165mm; 51cm, 170mm; 54cm, 172.5mm; 56cm, 172.5mm; 58cm, 175mm; 61cm, 175mm Shimano 105 FC-R7100, 50-34T; 48cm, 165mm; 51cm, 170mm; 54cm, 172.5mm; 56cm, 172.5mm; 58cm, 175mm; 61cm, 175mm
Pedals - - -
Chain Shimano HG 12spd, CN-M9100 Shimano HG 12spd, CN-M8100 Shimano HG-12spd, CN-M7100
Bottom Bracket T47, 76.75mm, ø24 T47, 76.75mm, ø24 Shimano BB-RS501 BSA
Front Derailleur Shimano DURA-ACE Di2, FD-R9250 Shimano Ultegra Di2, FD-R8150 Shimano 105 Di2, FD-R7150, Braze On
Rear Derailleur Shimano DURA-ACE Di2, RD-R9250 Shimano Ultegra Di2 12spd, RD-8150 Shimano 105 Di2 12 spd, RD-R7150
SHIFTER Shimano DURA-ACE Di2, ST-R9270 Shimano Ultegra Di2 12 spd, ST-R8170 Shimano 105 Di2 12spd, ST-R7170
Freewheel / Cassette Shimano DURA-ACE, 11-30T CS-R9200 Shimano Ultegra 12spd, 11-34T Shimano 105 12spd, 11-34T
WHEELS
Tires Vittoria Corsa Pro 30-622 fold TLR G2.0 700x30c Vittoria Corsa N.EXT 30-622 TLR G2.0 700x30c Vittoria Rubino Pro IV 30-622 TLR 70x30c
WHEELSET Vision Metron 45 SL Tubeless Clincher Vision Carbon SC45 Tubeless Clincher Vision Carbon SC30 AGX Tubeless Clincher
BRAKING SYSTEM
Brakes Shimano DURA-ACE Hydraulic Disc Brakes with 160mm Center Lock Rotors Shimano Ultegra Hydraulic Disc Brakes with 160mm Center Lock Rotors Shimano 105 Hydraulic Disc Brakes with 160mm Center Lock Rotors
Brake Levers Shimano DURA-ACE Di2 Shimano Ultegra Di2 Shimano 105 Di2
OTHER COMPONENTS
Grips/Tape Ciclovation Advanced, Leather touch, 3mm Thick Ciclovation Featherlight, 2.5mm Thick Ciclovation Flat Touch 3mm Thick
Handlebar BLKTEC R8 Carbon Bar Stem Combo, 48cm, 38cm, 90mm; 51cm, 38cm, 100mm; 54cm, 40cm, 100mm; 56cm, 40cm, 110mm; 58cm;42cm, 110MM; 61cm, 120mm, 42cm BLKTEC R2 Carbon Bars; 48cm, 38cm; 51cm, 38cm; 54cm, 40cm; 56cm, 40cm; 58cm, 42cm; 61cm, 42cm BLKTEC AL76061-T6; 48cm, 38cm; 51cm, 38cm; 54cm, 40cm; 56cm, 40cm; 58cm, 42cm; 61cm, 42cm
Stem *See Handlebar BLKTEC 3D forged 6061-T6; -7˚, Ø31.8; 48cm, 90mm; 51cm, 100mm; 54cm, 100mm; 56cm, 110mm; 58cm, 110mm; 61cm, 120mm BLKTEC 3D forged 6061-T6; -7˚, Ø31.8; 48cm, 90mm; 51cm, 100mm; 54cm, 100mm; 56cm, 110mm; 58cm, 110mm; 61cm, 120mm
Headset Token A-Box Headset with internal cable routing Token A-Box Headset with internal cable routing Token A-Box Headset with internal cable routing
Saddle Selle San Marco Shortfit 2.0 Open-Fit Carbon FX Selle San Marco Shortfit 2.0 Open-Fit Racing Xsilite rails Selle San Marco Shortfit 2.0 Open-Fit Manganese rails
Seat Post Haro Rivette Carbon Aero; 275mm for 48/51/54 / 375mm for 56/58/61 Haro Rivette Carbon Aero; 275mm for 48/51/54 / 375mm for 56/58/61 Haro Rivette Carbon Aero; 275mm for 42/48/51/54 / 375mm for 56/58/61
Seat Clamp Internal Internal Internal
Extras Includes Tubeless Valves, Tape and Sealant Includes Tubeless Valves, Tape and Sealant Includes Tubeless Valves, Tape and Sealant

GEOMETRY

SIZE 48 51 54 56 58 61
Top Tube (Effective) 518mm 533mm 549mm 565mm 581mm 605mm
Seat Tube (C-T) 430mm 470mm 510mm 536mm 558mm 590mm
Stack Height 513mm 533mm 553mm 574mm 594mm 624mm
Reach 374mm 383mm 387mm 393mm 398mm 406mm
Standover 721mm 753mm 786mm 809mm 832mm 862mm
Head Tube Length 110mm 130mm 153mm 164mm 188mm 220mm
Head Angle 70.9° 71.2° 71.2° 73° 73° 73°
Seat Angle 74.6° 74.3° 74.3° 73.3° 72.9° 72.3°
Wheel Base 983mm 997mm 1009mm 995mm 1008mm 1025mm
Chainstay 408mm 408mm 408mm 408mm 408mm 408mm
BB Drop 74mm 74mm 72mm 72mm 69mm 69mm
Axle to Crown 376mm 376mm 376mm 376mm 376mm 376mm
Fork Offset 53mm 53mm 53mm 45mm 45mm 45mm
Stem Length 90mm 100mm 100mm 110mm 110mm 120mm
Bar Width 380mm 380mm 400mm 400mm 420mm 420mm
Crank Length 165mm 170mm 172.5mm 172.5mm 175mm 175mm
Trail 62.7mm 60.4mm 60.7mm 57.8mm 57.8mm 57.8mm
Wheel Size 700c 700c 700c 700c 700c 700c

SIZE GUIDE

Size Inches CM
48 5'1" - 5'4" 153 - 163
51 5'4" - 5'7" 163 - 172
54 5'7" - 5'9" 172 - 178
56 5'9" - 5'11" 178 - 185
58 5'11" - 6'2" 185 - 192
61 6'2" - 6'5" 190 - 198
