Partimos Alloy Frameset

Partimos Alloy Frameset

93913

Size
€1.299,99 EUR
€1.299,99 EUR
Sale Coming Soon
Taxes included. Shipping calculated at checkout.

DELIVERY TIMES

Germany: 2 - 4 working days

EU countries: 4 – 8 working days

The Partimos Alloy Frameset brings the DNA of the Partimos platform into a modern aluminum bike. Identical geometry to the carbon models, smoothly finished welds, and integrated cable routing ensure a clean overall look.

The frame was developed for electronic shifting groups and completely dispenses with mechanical cable guides. This allows for a particularly clean integration of modern Di2 or wireless systems and underlines the platform's high-performance claim.

Together with the full carbon fork and the aerodynamic Partimos carbon seatpost, this creates a frameset that is perfect for individual high-performance builds.



View full details

PARTIMOS DNA. ALLOY DESIGN.

Ein auffälliger Rahmen

A gray and black Partimos Alloy Frameset by Haro Bikes with neon green accents, featuring the aerodynamic frame and front fork.

PARTIMOS ALLOY FRAME

ThePartimos Alloy FrameIt is based on the same race geometry as the Carbon Partimos models, thus offering a direct, precise riding feel at racing level.

A special feature of the platform is thatconsistently electronic setupThe frame was specifically designed for modern electronic shifting groups and completely eliminates the need for holes for mechanical shift cables. This results in a particularly clean design and maximum integration.

Smooth welds and fully internal cable routing underline the high-quality workmanship and clear design language of the frame.

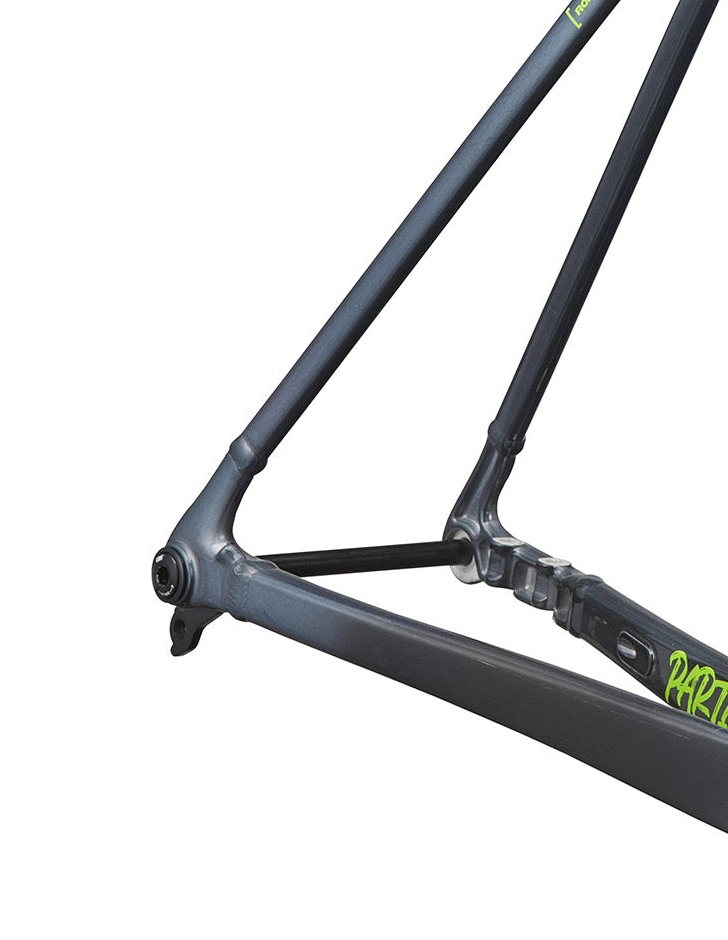

Close-up of the Haro Bikes Partimos Alloy Frameset showing rear triangle, dropouts, and a partially visible green logo.

PERFEKTE AUSRICHTUNG

The Partimos Alloy Frameset features self-centering thru-axlesthat ensure precise and repeatable wheel positioning. When inserting the wheel, the axle automatically aligns correctly, keeping the brake rotor and frame perfectly centered.

This not only simplifies wheel changes but also ensures that the brake runs freely immediately after installation and does not require readjustment.

Close-up of the Haro Bikes Partimos Alloy Frameset in metallic gray with green accents and branded tubes.

Instant shifts. Total control.

The Partimos Alloy Frameset relies on aFully integrated cable routing through head tube and frameThis results in a particularly tidy cockpit with clean lines and reduced air resistance.

In combination with theelectronic-only frame constructionThis results in a particularly clean setup without unnecessary openings or external lines. The result is not only more aerodynamic, but also significantly more aesthetically pleasing.

The integration reliably protects cables from dirt, water and mechanical stress – ideal for intensive training and long days on the road bike.

PRODUCT INFORMATION

DESCRIPTION

  • Partimos Alloy Road Bike Frame
    High-quality aluminum frame with smoothed welds, identical race geometry to the carbon Partimos platform, integrated cable routing, and UDH mount for modern drive systems
  • Optimized for electronic shifting systems
    Frame platform specially developed for electronic groupsets such as Shimano Di2 – for particularly clean integration and reduced maintenance
  • Full carbon fork
    Lightweight carbon fork with tapered carbon steerer for precise steering, high stiffness, and effective vibration damping
  • Carbon aero seat post
    Aerodynamically shaped carbon seat post for low weight, increased stiffness and additional vibration damping.
  • Race geometry of the Carbon-Partimos platform
    Performance-oriented geometry for direct power transmission, precise handling and maximum efficiency at high speeds.
  • UDH-compatible dropouts
    Future-proof interface for modern rear derailleurs and easy availability of spare parts
  • Neatly integrated cable routing
    Internal cable routing for a tidy look, better aerodynamics, and cable protection
  • Modern disc platform
    Flat mount for powerful disc brakes and maximum control in all conditions

SPECIFICATIONS

Components Specifications
Frame Partimos Alloy Frame, seamless flat welds, internal cable routing, flat mount disc, UDH compatible
Fork Full Carbon Fork with tapered carbon steerer and internal cable routing
Seatpost Partimos Aero Carbon Seatpost, 375 mm (all sizes)
Headset Token Integrated Headset with internal cable routing
Brake Mount Flat Mount Disc
Axles 12x100 mm Front / 12x142 mm Rear Thru Axle
Derailleur Hanger UDH – Universal Derailleur Hanger compatible
Bottom Bracket T47 Threaded Bottom Bracket
Cable Routing Fully internal cable routing
Drivetrain Compatibility Electronic shifting systems only (e.g. Shimano Di2)

GEOMETRY

SIZE 48 51 54 56 58 61
Top Tube (Effective) 518mm 533mm 549mm 565mm 581mm 605mm
Seat Tube (C-T) 430mm 470mm 510mm 536mm 558mm 590mm
Stack Height 513mm 533mm 553mm 574mm 594mm 624mm
Reach 374mm 383mm 387mm 393mm 398mm 406mm
Standover 721mm 753mm 786mm 809mm 832mm 862mm
Head Tube Length 110mm 130mm 153mm 164mm 188mm 220mm
Head Angle 70.9° 71.2° 71.2° 73° 73° 73°
Seat Angle 74.6° 74.3° 74.3° 73.3° 72.9° 72.3°
Wheel Base 983mm 997mm 1009mm 995mm 1008mm 1025mm
Chainstay 408mm 408mm 408mm 408mm 408mm 408mm
BB Drop 74mm 74mm 72mm 72mm 69mm 69mm
Axle to Crown 376mm 376mm 376mm 376mm 376mm 376mm
Fork Offset 53mm 53mm 53mm 45mm 45mm 45mm
Stem Length 90mm 100mm 100mm 110mm 110mm 120mm
Bar Width 380mm 380mm 400mm 400mm 420mm 420mm
Crank Length 165mm 170mm 172.5mm 172.5mm 175mm 175mm
Trail 62.7mm 60.4mm 60.7mm 57.8mm 57.8mm 57.8mm
Wheel Size 700c 700c 700c 700c 700c 700c

SIZE GUIDE

Size Inches CM
48 5'1" - 5'4" 153 - 163
51 5'4" - 5'7" 163 - 172
54 5'7" - 5'9" 172 - 178
56 5'9" - 5'11" 178 - 185
58 5'11" - 6'2" 185 - 192
61 6'2" - 6'5" 190 - 198
