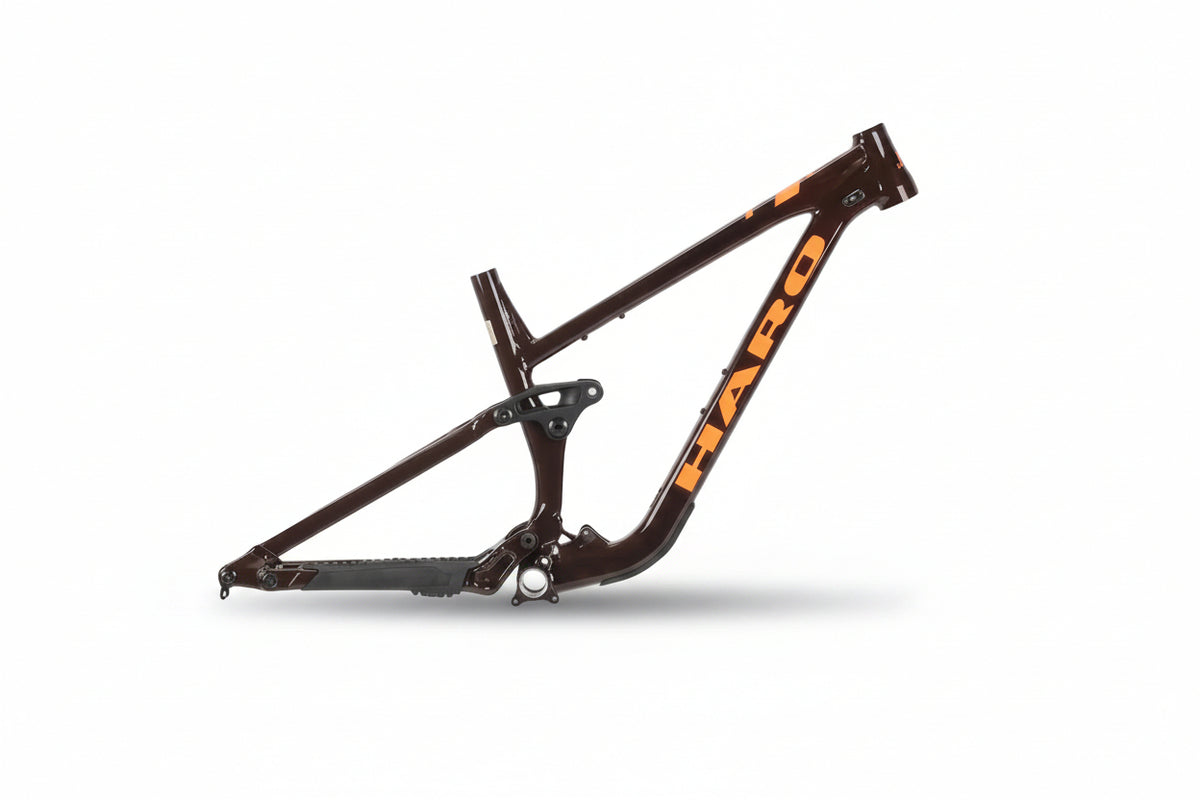

• A Cedar Brown/Orange Haro Bikes Greer Alloy Frameset with mullet-setup is displayed on a white background.

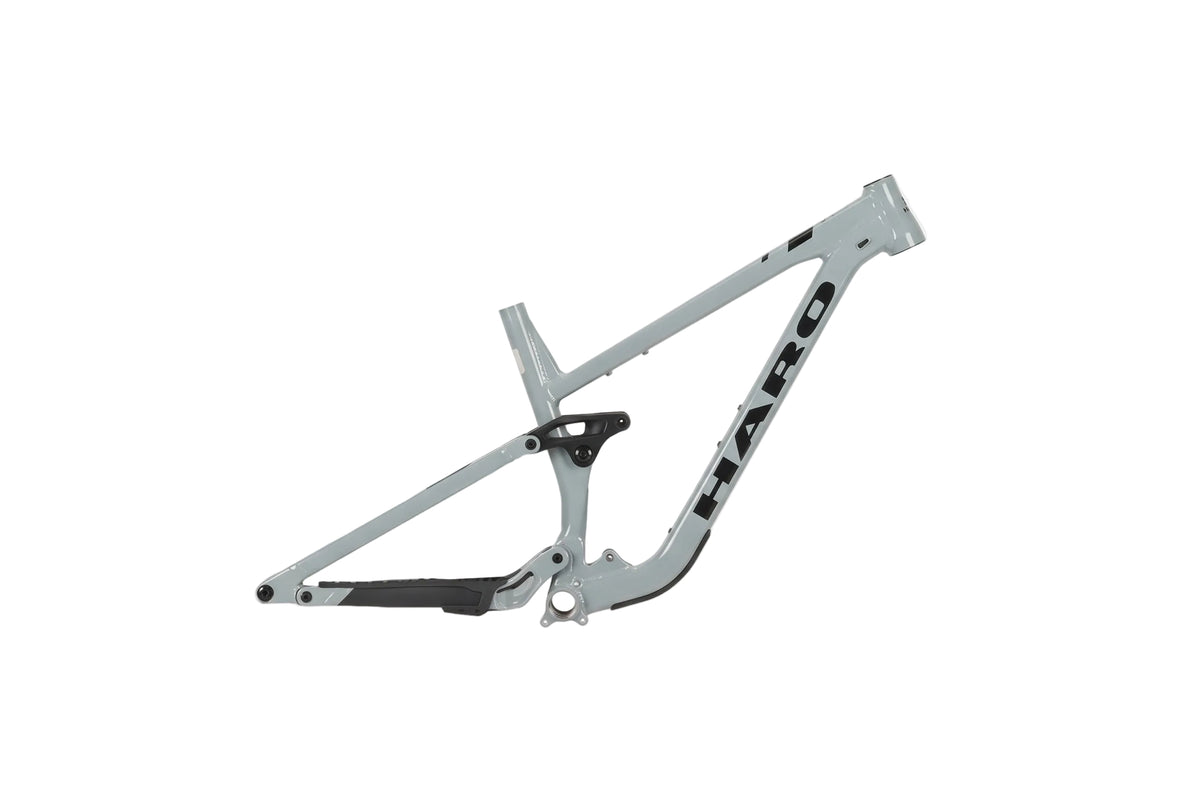

  • Greer Alloy Frameset by Haro Bikes in Semi-Gloss Slate Blue/Black, side view, isolated on white background.
1 2

Greer Alloy Frameset

Greer Alloy Frameset

HP-PT1-24-HA-G01-361

€1.399,99 EUR
€1.399,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Colour
Size

DELIVERY TIMES

Germany: 2 - 4 business days

Other EU countries: 4 – 8 business days

The HARO Greer Alloy Frameset is the perfect foundation for your custom enduro build. The robust aluminum frame combines modern geometry with an agile mullet setup featuring a 29-inch front wheel and a 27.5-inch rear wheel.

With 160 mm of rear travel and designed for forks with 170 mm of travel, the Greer is ready for demanding trails, technical descents, and long days at the bike park. Thanks to its Boost rear end and UDH derailleur hanger, the frame offers a modern and versatile platform for your personal custom build.

The frameset is deliberately offered without a shock or fork. This allows you to tailor the suspension, drivetrain, brakes, and components precisely to your riding style and requirements.

View full details

BAUE ES AUF DEINE WEISE

Developed for steep trails, technical descents, and big jumps – ready for your components, your riding style, and your lines.

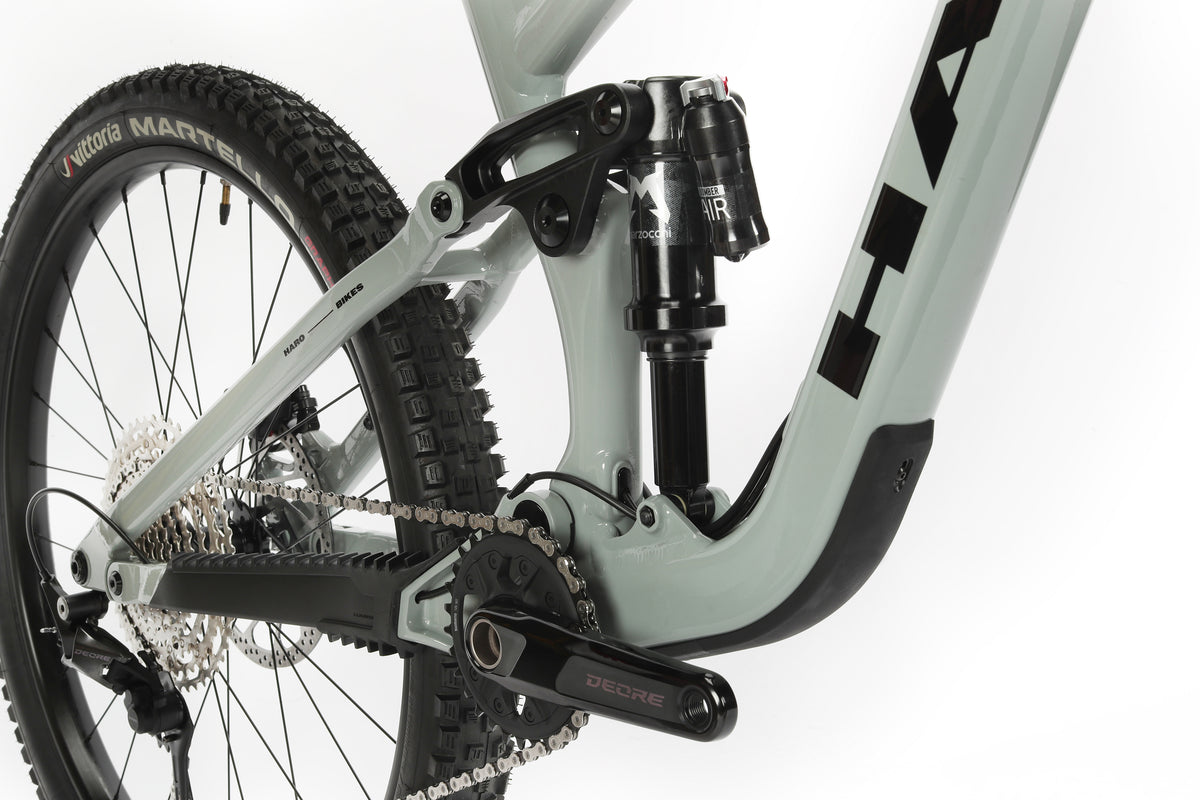

Close-up of a gray Haro Bikes Greer Alloy 2 mountain bikes drivetrain and rear suspension system, featuring a Deore crankset, chain, and rear shock beneath the frame. Its back tire boasts textured tread for off-road adventures.

PROGRESSIVE BY DESIGN

The HARO Greer Alloy frame was developed for steep trails, technical descents, and big hits. Its progressive rear suspension kinematics offer 160mm of travel, combining sensitive response with plenty of support when it counts.

Combined with a suspension fork with 170mm of travel, it creates a confident enduro platform that gives you security, control, and reserves even on demanding trails.

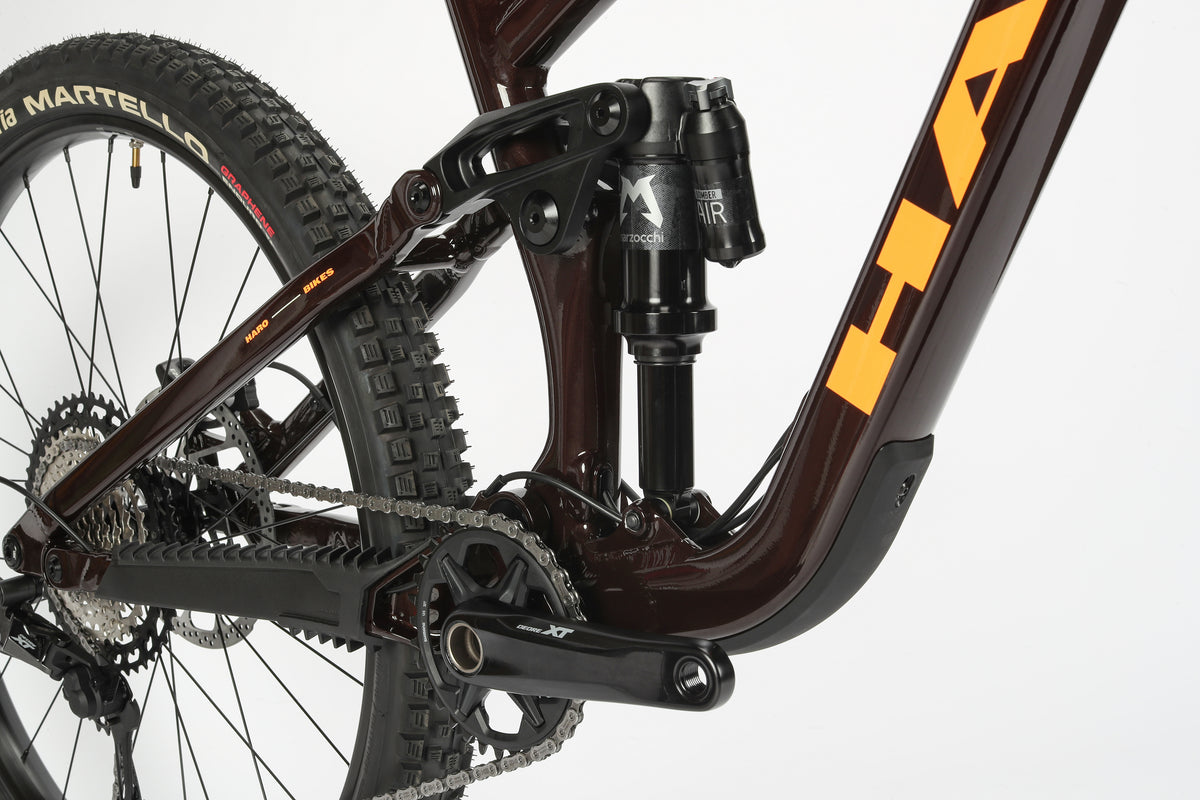

Close-up of the Greer Alloy 1s rear suspension, chain, and crankset featuring a progressive Federung. The Haro Bikes frame flaunts a sleek dark finish with orange branding, set against a plain white background highlighting the tire tread.

STABLE UP FRONT. PLAYFUL OUT BACK.

The Mullet concept combines a 29-inch front wheel with a 27.5-inch rear wheel. At the front, you benefit from smooth running, safe rollover behavior, and additional stability. The smaller rear wheel makes the Greer agile, nimble, and easy to control at the same time.

The aggressive geometry with a flat head tube angle and steep seat tube angle ensures a central position on the bike – efficient uphill and uncompromising downhill.

The Haro Bikes Greer Alloy 1 is a black and brown mountain bike with thick tires, disc brakes, and an Alloy Greer-Rahmen. Perfect for off-road cycling, it features wide handlebars, a spacious seat, and a progressive Federung system. The brand name is prominently displayed on the frame.

YOUR FRAME. YOUR BUILD.

The Mullet concept combines a 29-inch front wheel with a 27.5-inch rear wheel. At the front, you benefit from smooth running, safe rollover behavior, and additional stability. The smaller rear wheel makes the Greer agile, nimble, and easy to control at the same time.

The aggressive geometry with a flat head tube angle and steep seat tube angle ensures a central position on the bike – efficient uphill and uncompromising downhill.

PRODUCT INFORMATION

SPECIFICATIONS

  • Haro Greer aluminum full-suspension frame with progressive rear suspension kinematics and 160 mm travel
  • Shock mount: Trunnion Mount, 205 × 65 mm
  • Tapered head tube for fork steerer tubes from 1 1/8" to 1.5"
  • Designed for suspension forks with 170 mm travel
  • Mullet configuration with 29" front wheel and 27.5" rear wheel
  • 148 × 12 mm Boost rear axle standard
  • SRAM UDH derailleur hanger
  • BSA bottom bracket shell with 73 mm width
  • Prepared for internally routed dropper seatpost with 34.9 mm diameter
  • Available in sizes S, M, L, and XL
  • Delivery without shock and suspension fork

GEOMETRY

SIZE S M L XL
Seat Tube (C-T) 361mm 410mm 448mm 473mm
Top Tube (Effective) 561mm 593mm 620mm 646mm
Head Tube Angle 63.8° 63.8° 63.8° 63.8°
Seat Tube Angle 78° 78° 78° 78°
Chainstay Length 435mm 435mm 435mm 435mm
BB Drop 30mm 30mm 30mm 30mm
Wheelbase 1210mm 1244mm 1273mm 1303mm
Head Tube Length 90mm 100mm 110mm 120mm
Standover 697mm 701mm 714mm 714mm
Stack Height 615mm 624mm 633mm 642mm
Reach 430mm 460mm 485mm 510mm
Axle to Crown 584mm 584mm 584mm 584mm
Fork Offset 44mm 44mm 44mm 44mm
Stem Length
Bar Width
Crank Length
Wheel Size 29F / 27.5R 29F / 27.5R 29F / 27.5R 29F / 27.5R
