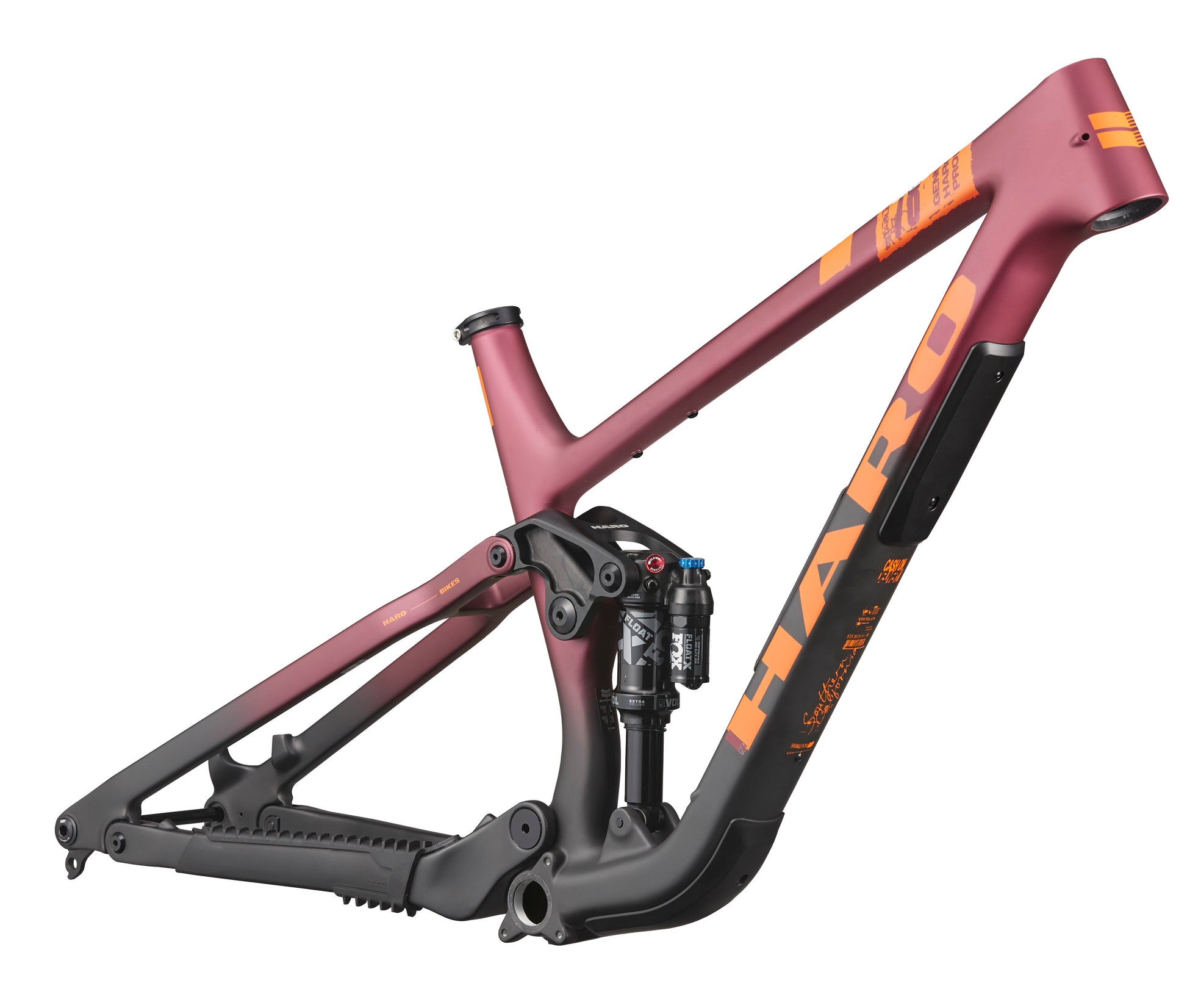

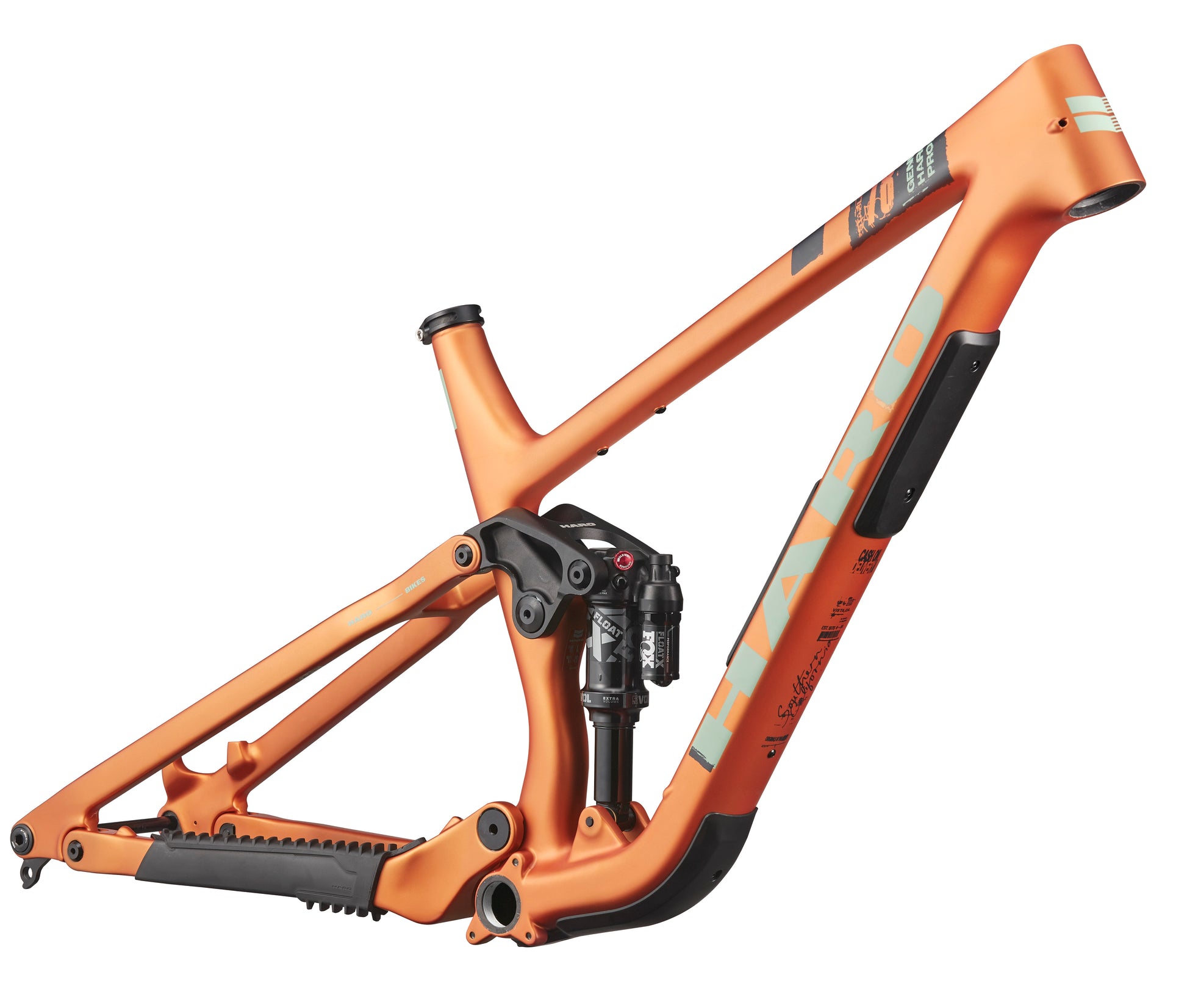

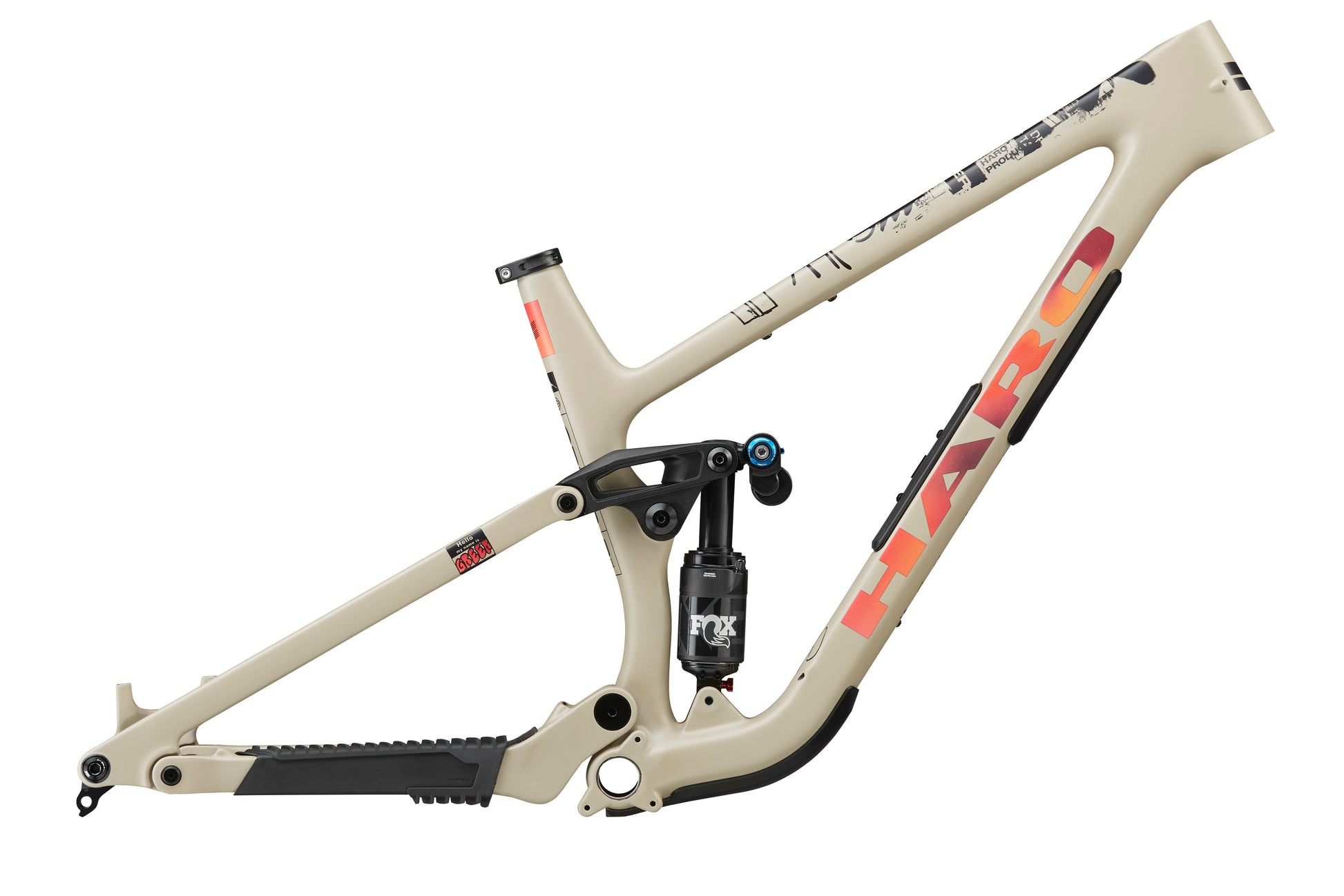

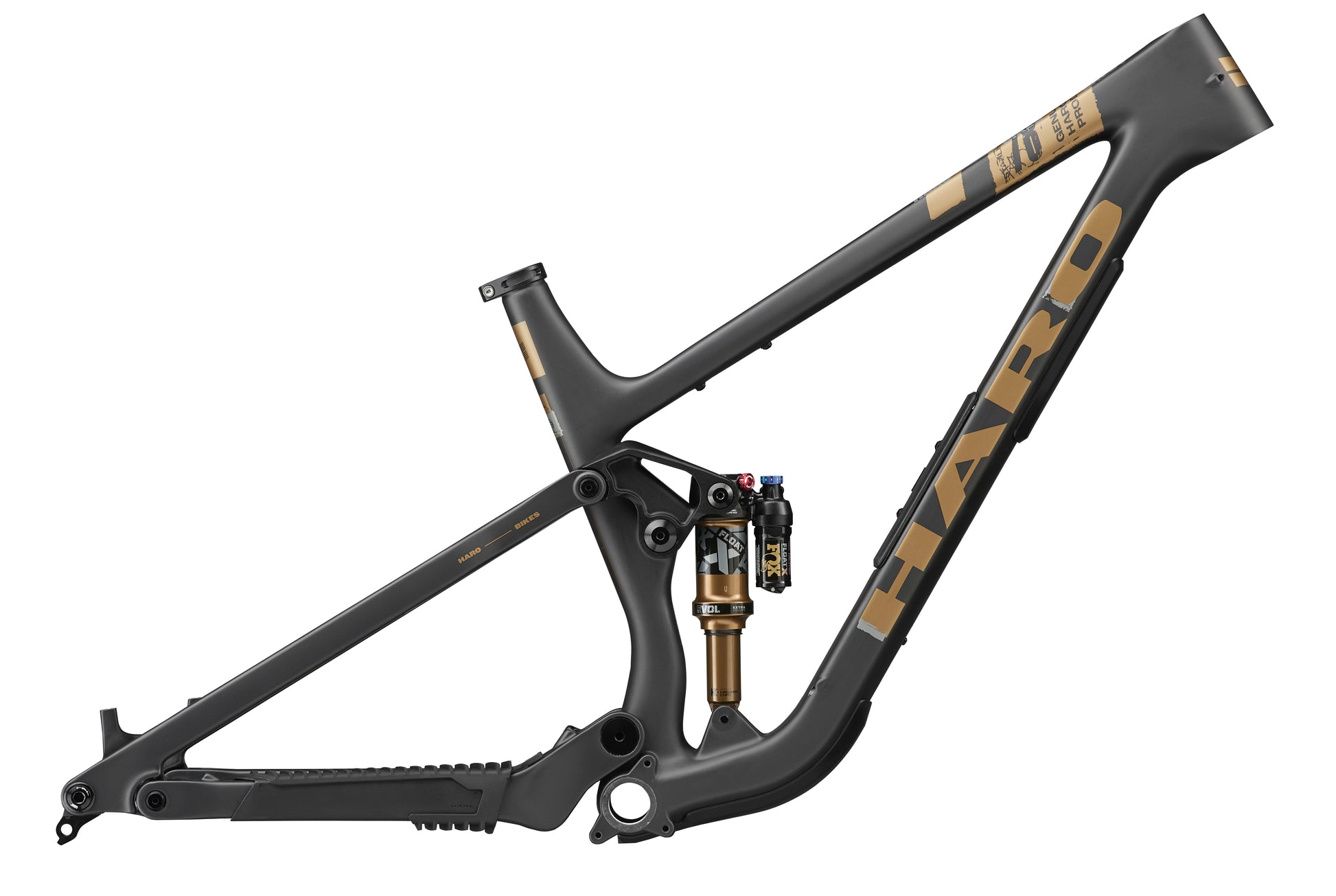

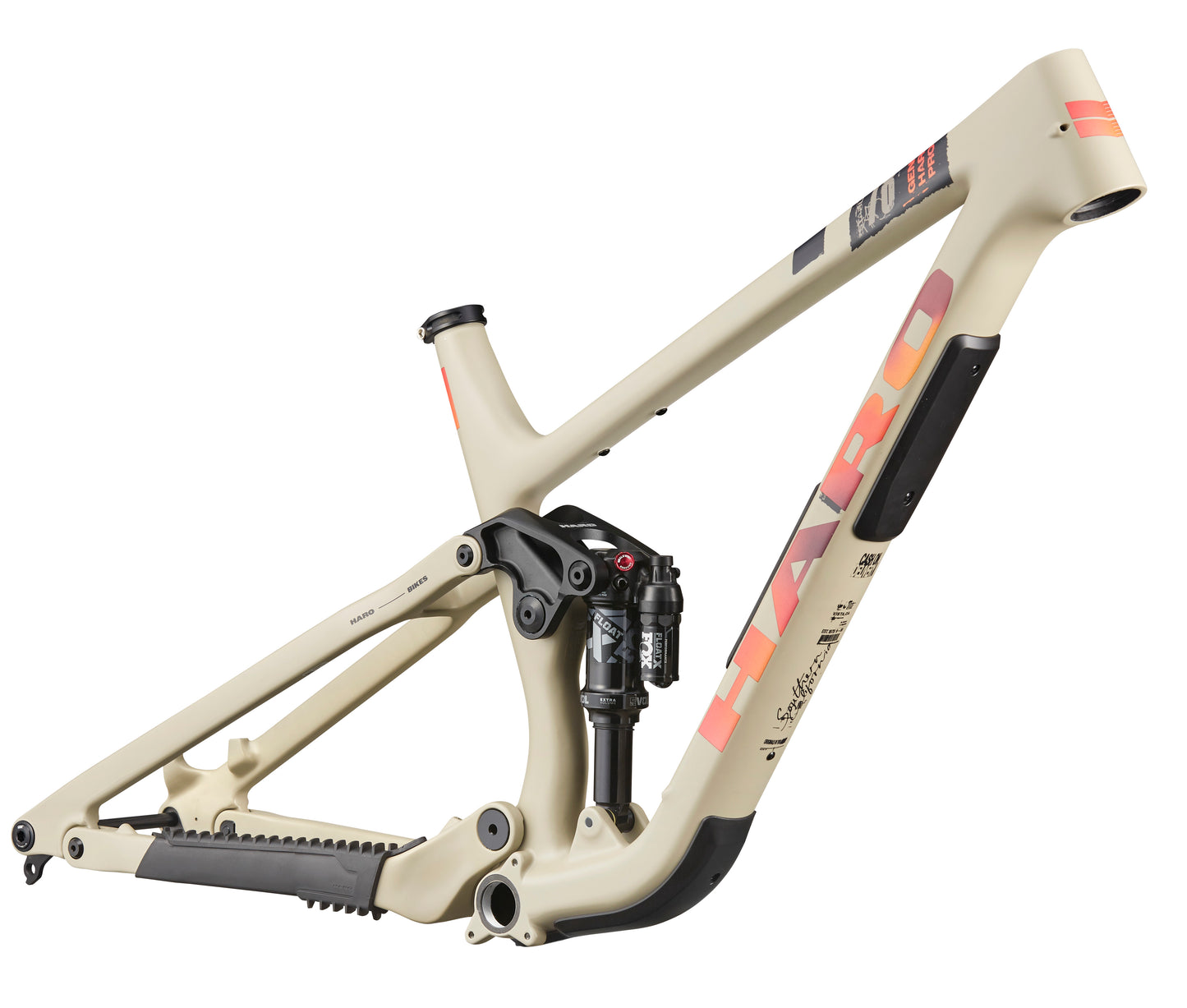

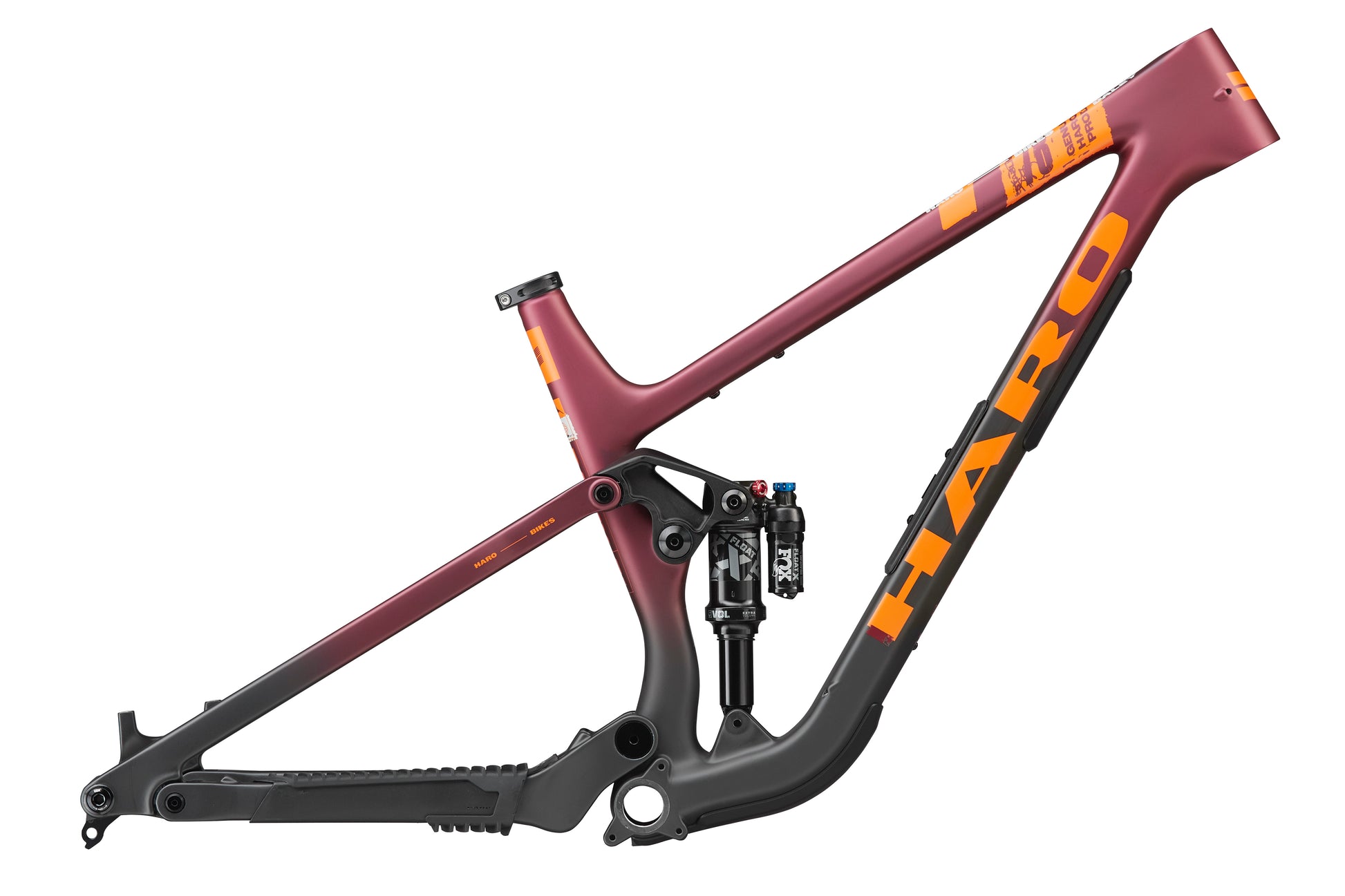

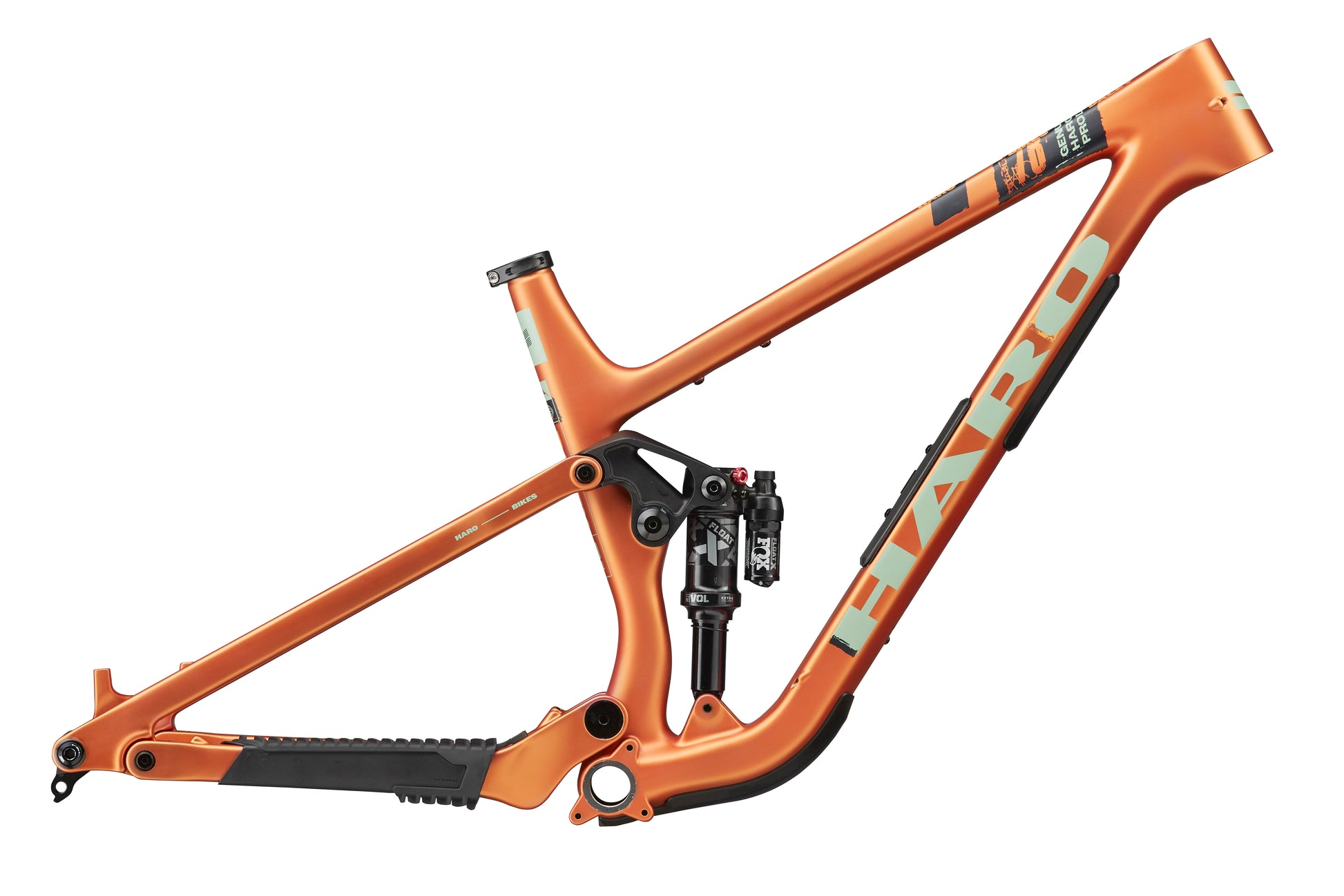

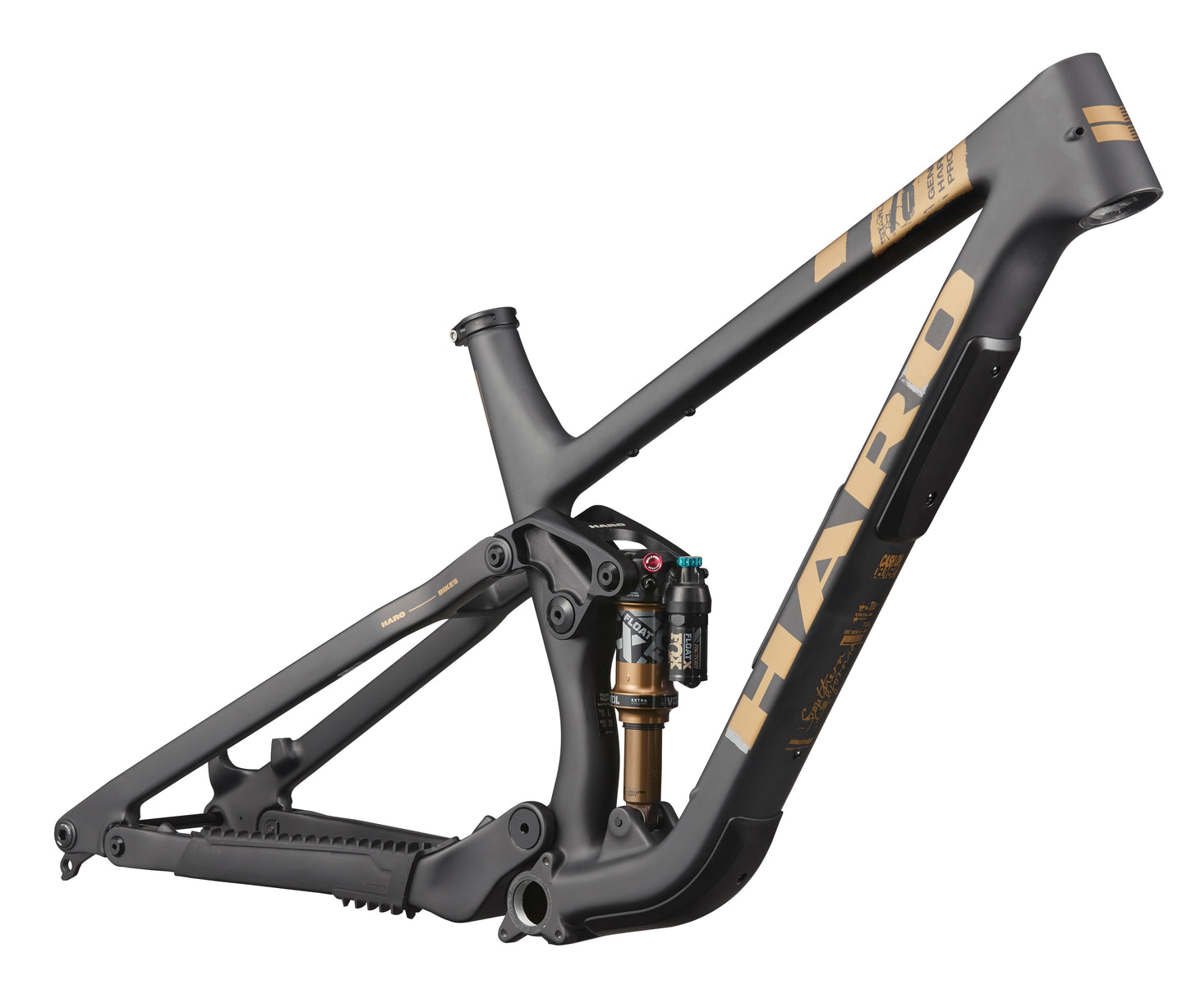

Daley Carbon Frameset

Daley Carbon Frameset

SKU: 9-15299

Regular price €2.499,99 EUR
Regular price Sale price €2.499,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
Size

LIEFERZEITEN

Deutschland: 2 - 4 Werktage

EU-Ausland: 4 – 8 Werktage

The Daley Carbon frameset combines the versatility of a modern all-mountain bike with the performance of contemporary carbon technology. With 140mm of rear travel and geometry optimized for 150mm forks, the frame offers a balanced blend of uphill efficiency, trail agility, and downhill confidence.

The street art-inspired graphics give the Daley Carbon a distinctive, modern design language and deliberately create a counterpoint to classically understated trail bikes. Function and design blend seamlessly here.

The high-quality carbon frame impresses with its high stiffness, low weight and well-thought-out details – the perfect basis for individual trail and all-mountain builds.

(Shock absorber not included)

View full details

DESIGN MEETS PERFORMANCE

The Daley Carbon combines modern carbon technology with striking street art graphics – ideal for individual builds with character.

DISTINCTIVE LOOK

At theDaley CarbonDesign is not an end in itself. Every graphic element follows a clear functional idea.

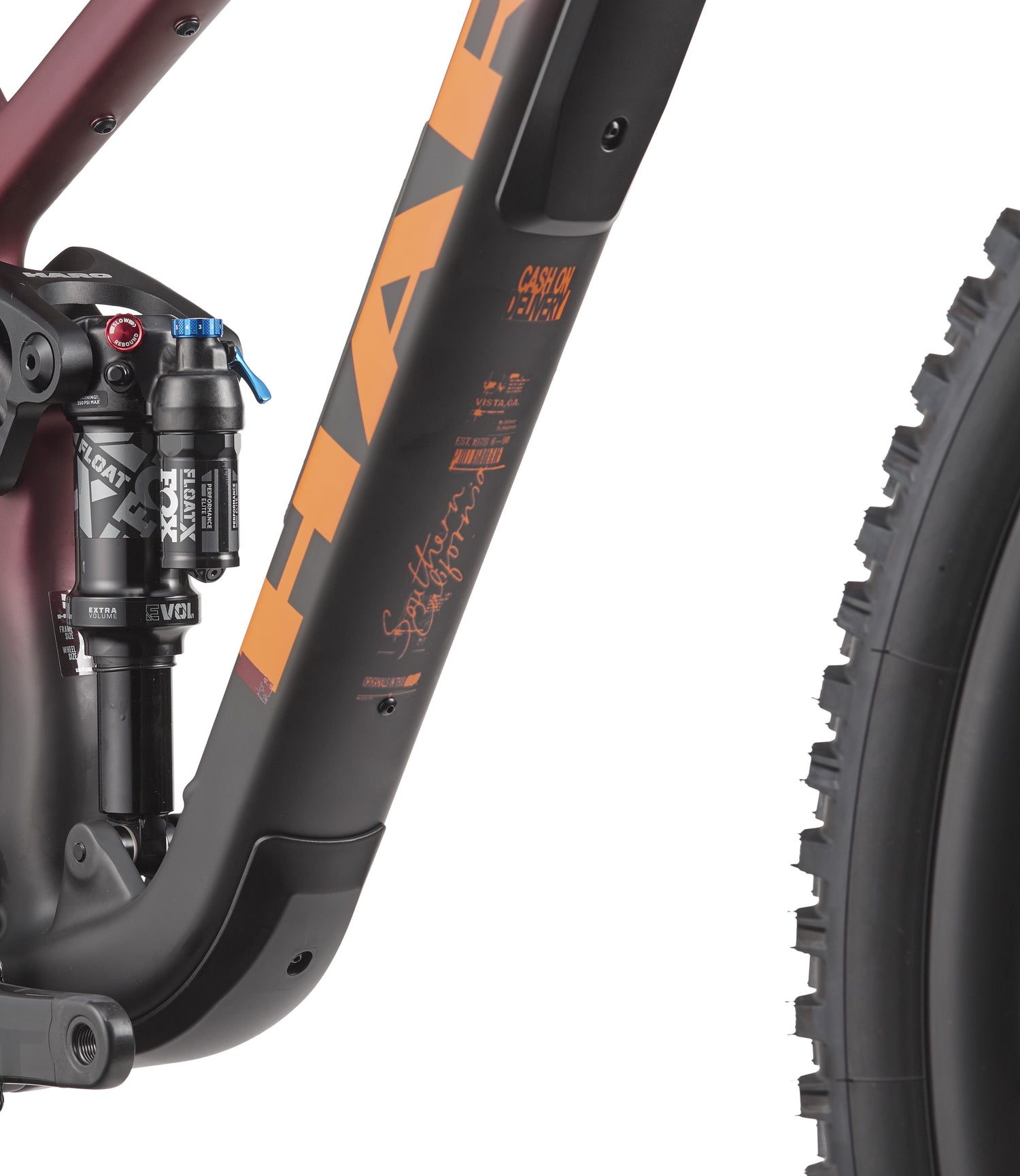

The Integrated impact protection at the bottom bracketIt reliably protects the carbon frame in extreme situations – precisely where stones, steps and hard impacts occur.

On the downtube, a robust bumper For added protection during pick-up rides, in bike parks, or when transporting the bike on a lift. Functional protective solutions are thus deliberately integrated into the Street art-inspired design Integrated – visible, honest and uncompromising.

SENSITIVE RESPONDENCE, CONTROLLED SUSPENSION TRAVEL

The 140 mm rear suspensionThe Daley Carbon impresses with sensitive response behavior and clearly defined progression. It offers plenty of traction on technical climbs and remains controlled even on fast, hard hits.

Efficient in acceleration, stable on descents – the rear suspension delivers exactly the balance that defines a modern all-mountain bike.

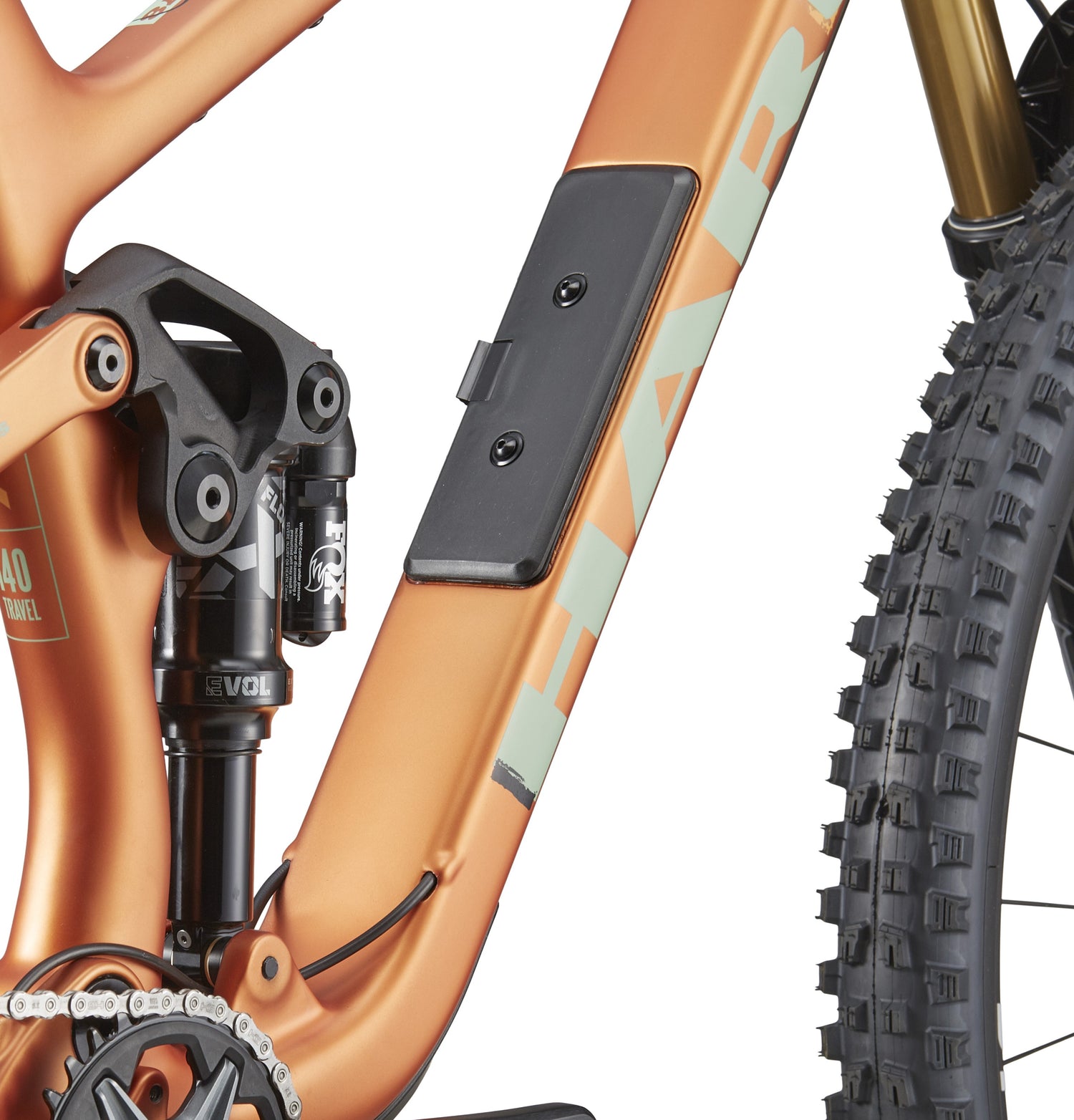

PRACTICAL INTEGRATED STORAGE SPACE

The 140 mm rear suspensionThe Daley Carbon impresses with sensitive response behavior and clearly defined progression. It offers plenty of traction on technical climbs and remains controlled even on fast, hard hits.

Efficient in acceleration, stable on descents – the rear suspension delivers exactly the balance that defines a modern all-mountain bike.

PRODUCT INFORMATION

SPECIFICATIONS

Specifications
FRAMESET
Frame Daley Carbon Full Suspension frame with downtube protector, 1-1/8" - 1-1/5" Tapered Head Tube, 148mm Boost OLD, UDH Derailleur Hanger
Rear/front suspension travel 140 mm / 150 mm
Bottom Bracket 68/73 BSA
brake mount 203 mm Postmount
seat tube diameter 34,9 mm / 38,9 mm clamp
Maximum tire width 2.6” (66 mm) / 29" Wheels
Recommended fork size 150 mm Travel / Rake 44 mm
Suspension mount dimensions Trunnion Mount, 185x52.5mm

GEOMETRIE

Geometry & Sizing
SIZESMLXL
Seat Tube (C-T)361mm410mm448mm473mm
Top Tube (Effective)561mm593mm620mm646mm
Head Tube Angle63.8°63.8°63.8°63.8°
Seat Tube Angle78°78°78°78°
Chainstay Length435mm435mm435mm435mm
BB Drop30mm30mm30mm30mm
Wheelbase1210mm1244mm1273mm1303mm
Head Tube Length90mm100mm110mm120mm
Standover697mm701mm714mm714mm
Stack Height615mm624mm633mm642mm
Reach430mm460mm485mm510mm
Axle to Crown584mm584mm584mm584mm
Fork Offset44mm44mm44mm44mm
Stem Length
Bar Width
Crank Length
Wheel Size29F / 27.5R29F / 27.5R29F / 27.5R29F / 27.5R
